ADF / Scanner Mechanism
ADF mechanism

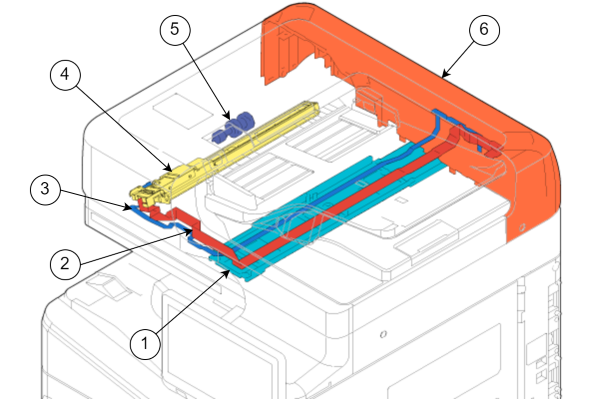

| No. | Name |
|---|---|
| 1 | ADF Lower Cover |
2 |
ADF CISM FFC (Signal) |
| 3 | ADF CISM FFC (Power Supply) |
| 4 | ADF CIS Module |
| 5 | ADF Retard Roller |
| 6 | ADF Rear Cover |

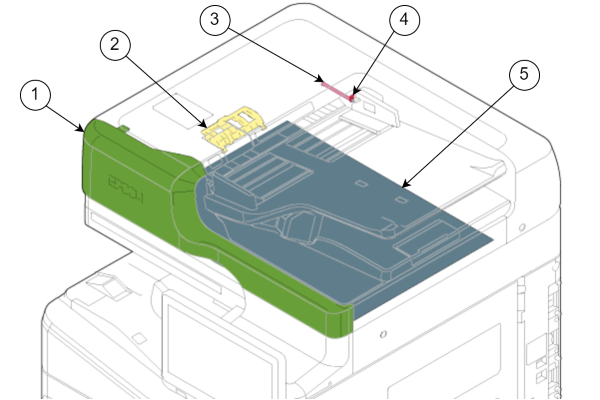

| No. | Name |
|---|---|
| 1 | ADF Front Cover |
| 2 | ADF Retard Roller |
| 3 | Hinge Stopper |
| 4 | C-Ring |
| 5 | Document Mat Assy |
| No. | Name |
|---|---|
| 1 | ADF Unit |
| 2 | ADF Pickup Roller |
| 3 | |
| 4 | Document Stopper |
Scanner Mechanism
| No. | Name |
|---|---|
| 1 | SCN Upper Case |
| 2 | SCN Left Cover Sub |
| 3 | ADF Rear Cover |

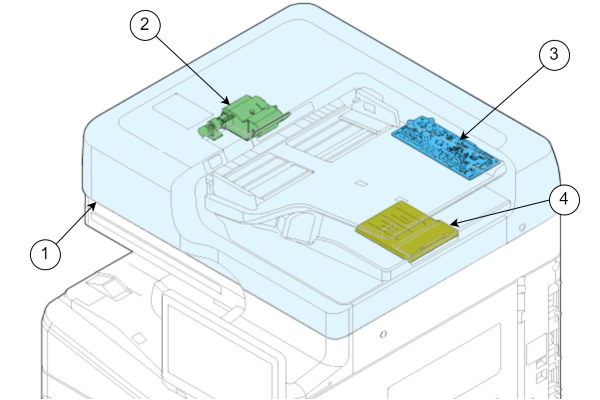

| No. | Name |
|---|---|
| 1 | SCN CIS Module |
| 2 | SCN Unit |
| 3 | CISM Spacers (x2) |
| 4 | SCN Board Assy |
