306050206 SDL Paper Bundle Lowering HP Sensor

Program No. Menu Name Judgment method Remarks
306050206 SDL Paper Bundle Lowering HP Sensor Execute [306050104 SDL Paper Bundle Lowering Drive Motor] and check. TRUE: Detection
FALSE: No Detection
Default: FALSE

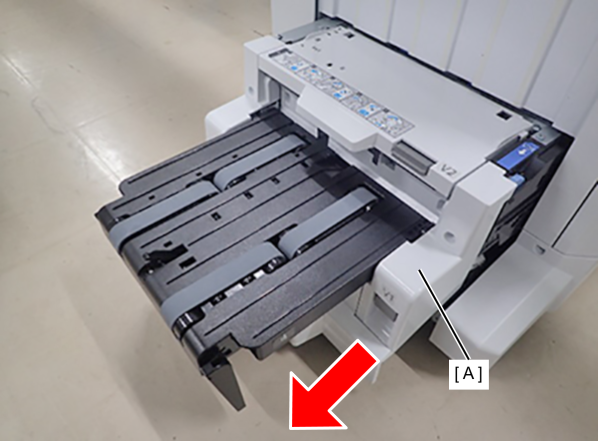

  1. Pull out the Paper Feed Unit to Saddle (A).

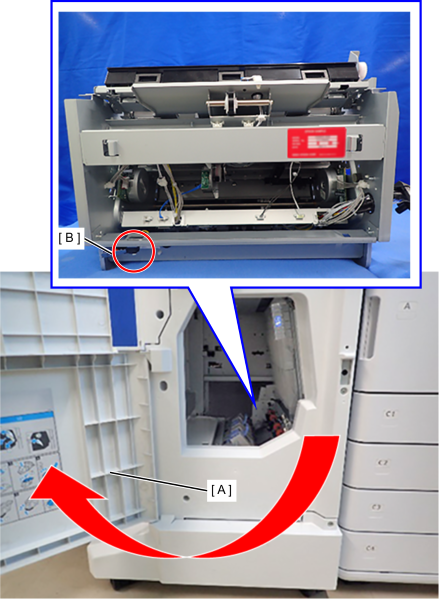

  2. Open the U1 cover (A) and push the sensor section (B) of the SDL Unit Sensor by hand.

    * Be careful not to injure yourself as the mechanism performs initialization operations.

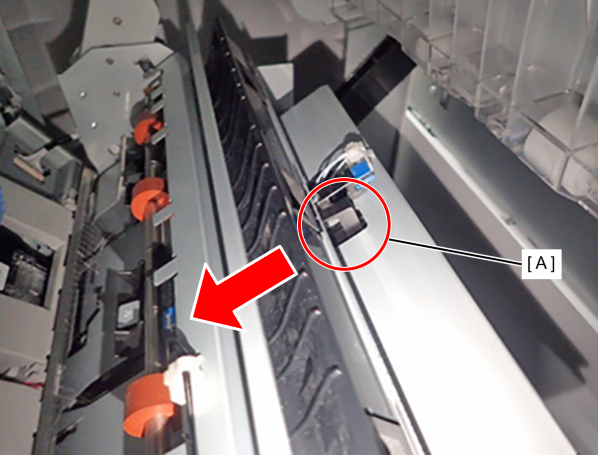

  3. In the state of step 2, check the detection status of the sensor while moving the SDL Paper Bundle Lowering plate (A) downward by hand.
