301030208 Head Rear Sensor

Program No. Menu Name Judgment method Remarks
301030208 Head Rear Sensor Shield the sensor from light with paper, etc. TRUE: No Detection
FALSE: Detection
Default：TRUE
Check with the cover closed as it is affected by external light.
  1. Open the right door unit (A).

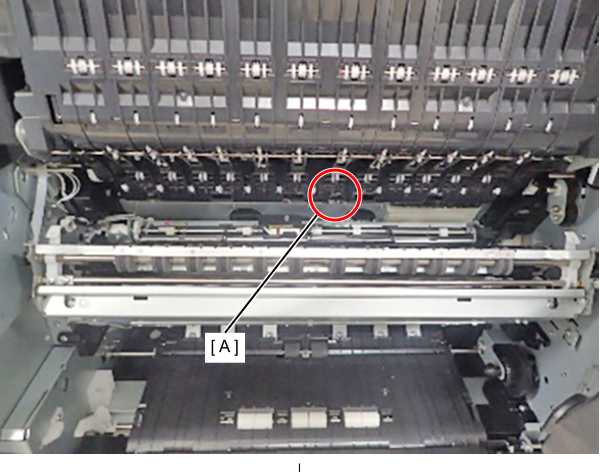

  2. Open the D4 jam release guide (A).

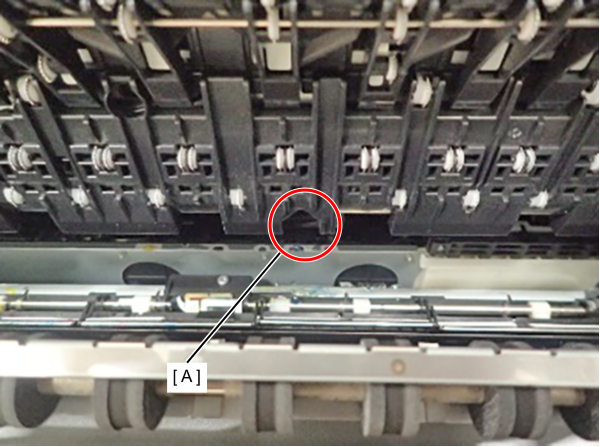

  3. Check the sensor detection status by holding a sheet of paper or your hand over the point (A) in the figure.
