HDD Cable (Discrete Wire)

  1. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW
  2. Remove the two screws and slide the Left Cover Sub Upper (A) in the direction of the arrow to remove it.
    • : 3x10DW
  3. Remove the 4 screws and remove the right cover sub (A).
    • : 3x10DW
  4. Pull out the C1 cassette (A). (about 100mm)
  5. Pull out the C2 cassette (A). (about 100mm)
  6. Remove 2 screws and remove the Left Cover Lower (A) in the direction of the arrow.

    • : 3x10DW
  7. Remove 1 screw and slide the rear cover (A) in the direction of the arrow to remove it.
    • : 3x10DW
    Assembly / 組み立て

    Align the 5 hooks on the rear cover with the 5 holes on the main unit and attach it.
  8. Remove 1 screw and remove the Left Cover Sub Lower (A) in the direction of the arrow.

    • : 3x10DW
  9. Remove 4 screws.


    • : 4x8D
  10. Slightly lift the board box (A) to release the hook.
  11. Open the board box (A).


    Check Point / チェックポイント
    • By hooking the hook (A) of the board box to the hole in the main body, the position of the board box is stabilized, making it easier to work.
    • Do not close the circuit board box while hooking the hook (A) on the main unit. The frame may be deformed.

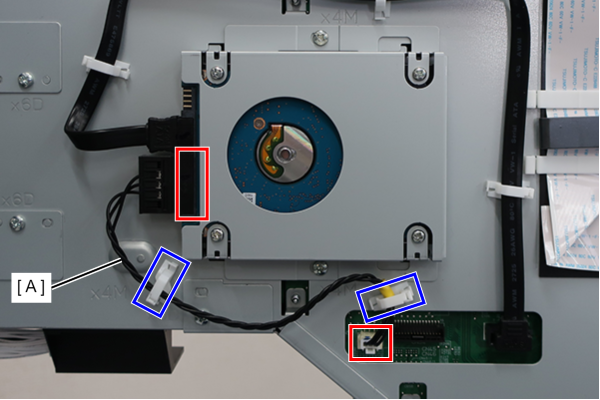

  12. Release the 2 clamps.
  13. Disconnect the cables from the 2 connectors, and remove the HDD cable (discrete wire) (A).
