70101 Inclination Sensor Status (Only for AM-C6000/C5000/C4000)

  1. Start the service support mode.
  2. Select [Installation Settings and Operation Check].

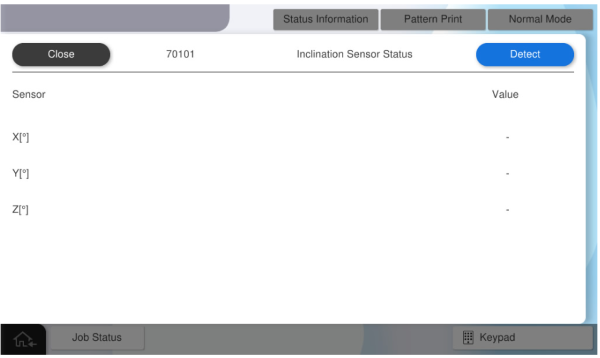

  3. Select [Inclination Sensor Status].
  4. Press [Detect].

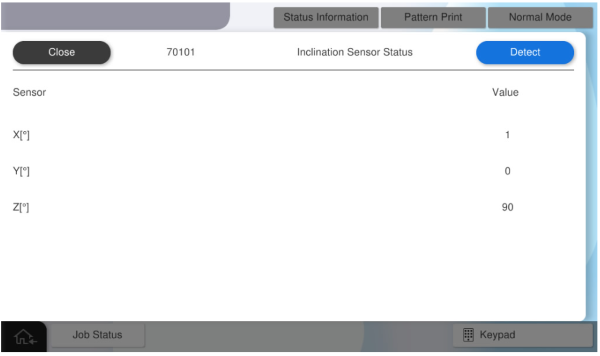

  5. When the tilt detection by the sensor is completed, the detected value is displayed.



    Note / 補足
    • There is no problem if the values of X and Y are within ±3°.
    • There is no problem if Z is a value near 90°.
