60204 ADF Scaling Calibration (300dpi)

Adjust the sub scaling (paper feed direction) for ADF scanning (300dpi).

The following charts are used for this adjustment.

Chart name Product name Part code Chart image

ADF A3 Paper Feed Accuracy Inspection Chart

Cueing adjustment chart

 ADF,CHART (D),A3-DS 1698220

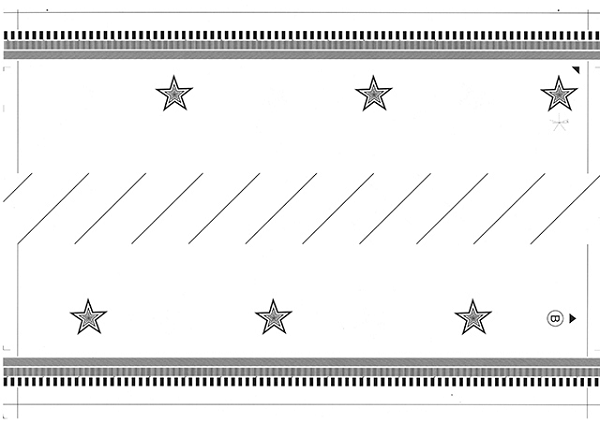

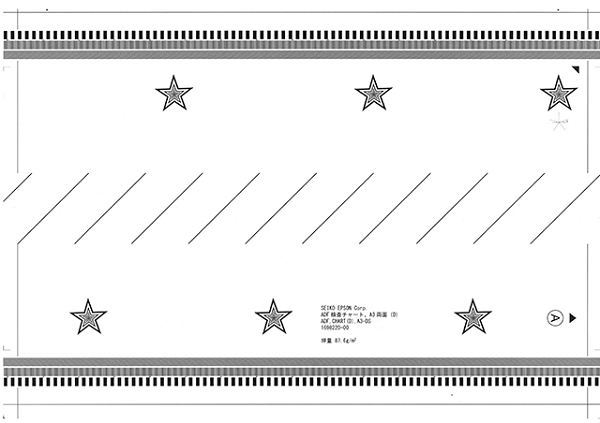

  • Side A
  • Side B
Chart setting direction

Load the paper with the A side facing up and facing the paper feed slot so that the arrow is at the top.

Adjustment Procedure
  1. Start the service support mode.
  2. Select [06 Individual Adjustment].
  3. Select the [ADF/SCN] tab.

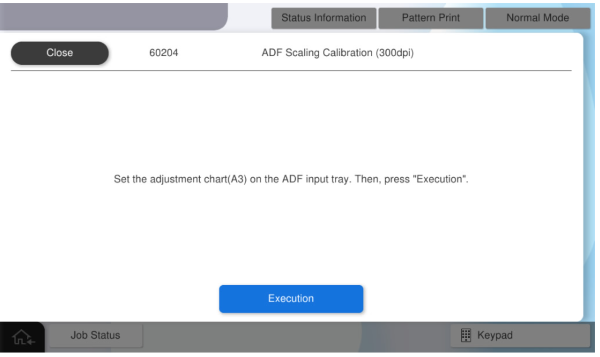

  4. Select [60204 ADF Scaling Calibration (300dpi)]
  5. Set the chart on the ADF tray and press [Execute].
