2011301 Color Gradation Pattern (Deactivate nozzle adjustment)

Program No.

Pattern Name

Specifications

Pattern Image (Paper transport direction: arrow direction)

Target image quality defect

2011301

Color Gradation Pattern (Deactivate nozzle adjustment)

(AM-M5500: Gradation Pattern (Deactivate nozzle adjustment))

  • Pattern outline: outputs the "20103 Color Gradation Pattern (AM-M5500: Gradation Pattern)" with the nozzle self-diagnosis system function OFF.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 1

  • nozzle clogging
  1. Start the service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].

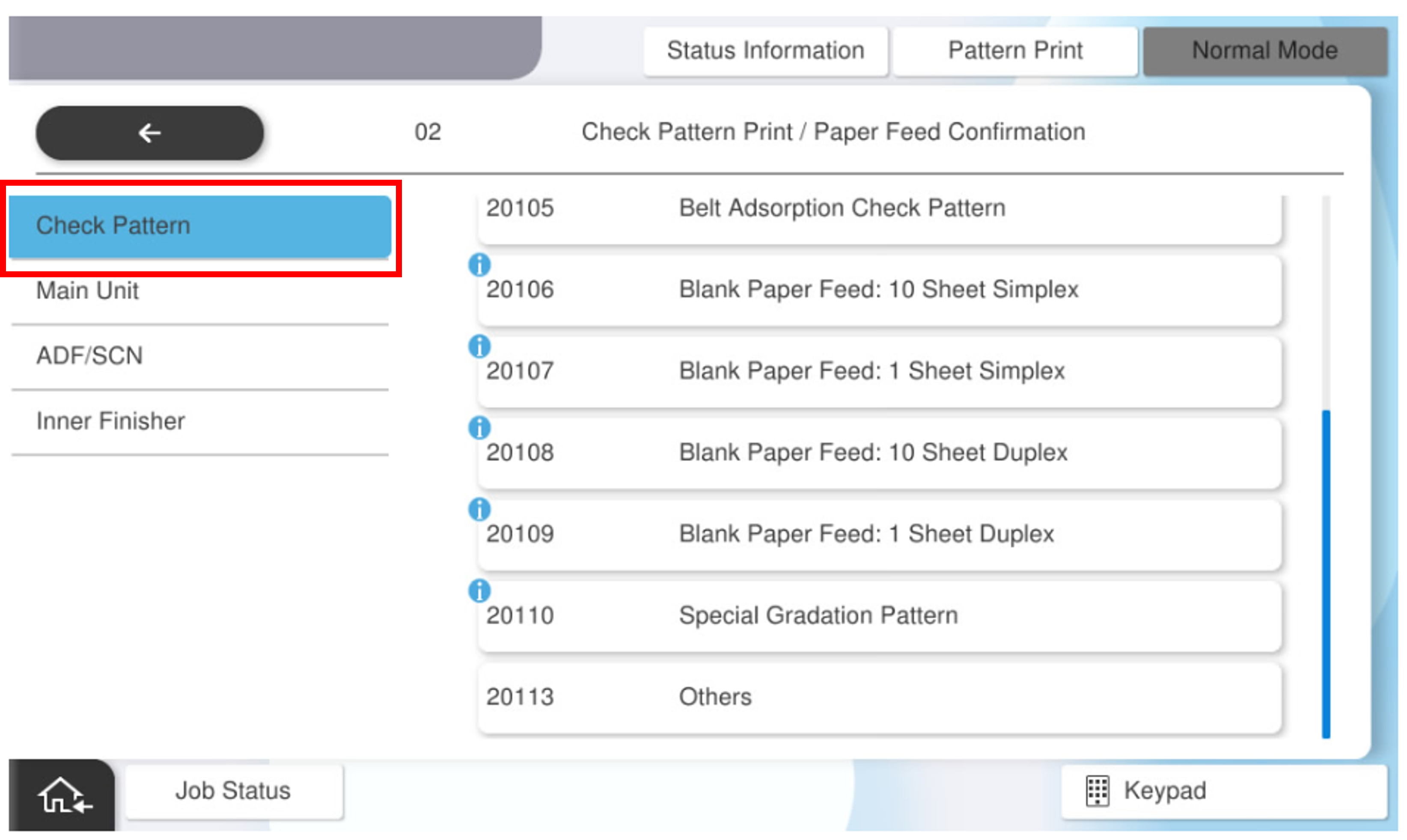

  3. Select [Check Pattern].


  4. Select [2011301 Color Gradation Pattern (Deactivate nozzle adjustment) (AM-M5500: 2011301 Gradation Pattern (Deactivate nozzle adjustment))].

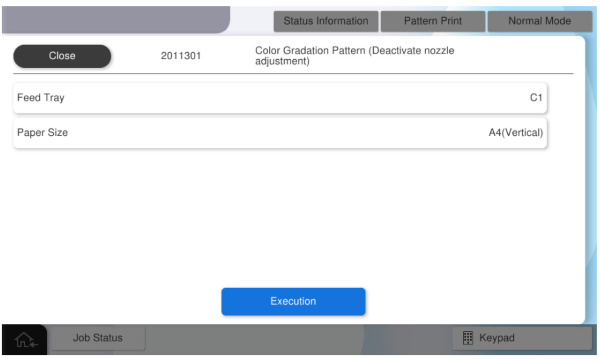

  5. Press each setting item button to make the print settings.


    The selectable items are as follows.

    Program No. Pattern Name Setting Items Choice
    2011301 Color Gradation Pattern (Deactivate nozzle adjustment) Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Tray
    Available Paper Sizes A4 (Vertical), Letter (Vertical)
  6. Press [Execution].
