Font Cover Sensor

  1. Release the 2 dowels with a flathead screwdriver and remove the Front Cover (A).
  2. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW
  3. Remove one screw, and remove the front cover upper (A) in the direction of the arrow while pressing the hook.

    • : 3x10DW
  4. Slide the front decorative cover upper (A) in the direction of the arrow to remove it.
  5. Release the hook and remove the Front Decorative Cover Lower (A) in the direction of the arrow.
  6. Remove 6 screws and remove the Front Right Cover (A).

    • : 3x10DW/P
  7. Remove 4 screws and remove the Front Left Cover (A).

    • : 3x10DW/P

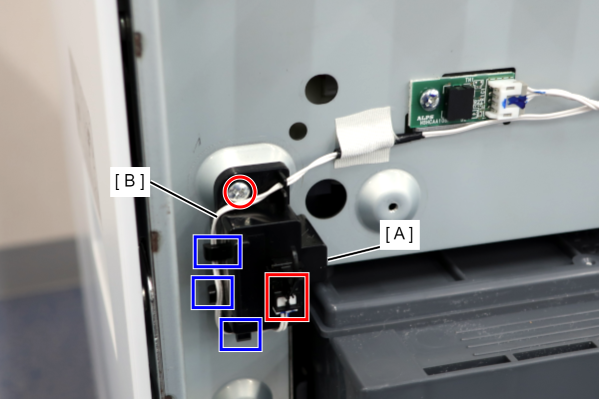

  8. Remove the cable (B) from the Front Cover Sensor (A) and release the cable from the lead holder.
  9. Remove the 1 screw and remove the Front Cover Sensor Assy (A).

    • :3x8D/P

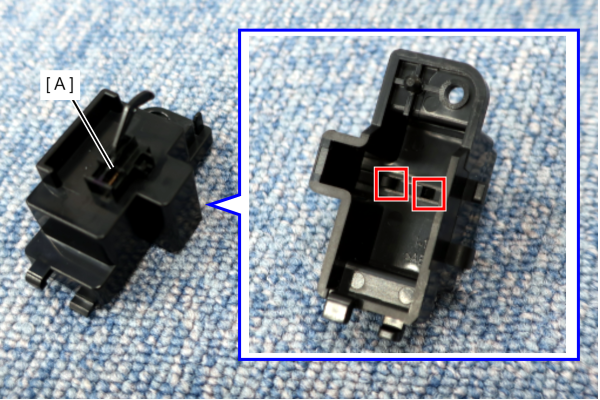

  10. Release the 2 hooks on the rear side and remove the Font Cover Sensor (A).
