306020206 FIN Paper Pulling Paddle HP Sensor

Program No. Menu Name Judgment method Remarks
306020206 FIN Paper Pulling Paddle HP Sensor Check the sensor by rotating the shaft by hand. TRUE: Detection
FALSE: No Detection
Default: FALSE

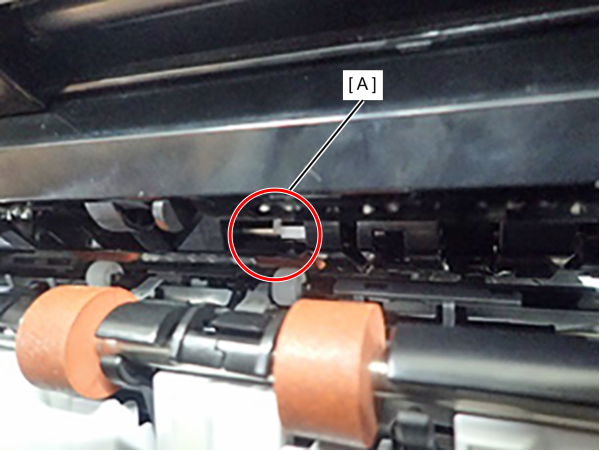

  1. Lift the portion (A) in the direction of the arrow.


    Caution / 注意

    Be careful not to touch the Anti Static Brush.
  2. Check the sensor detection status by rotating the shaft (A) shown below.


    * The sensor detection status returns to “TRUE” when you open and close the IN FIN cover.
