306030210 FIN Upper Tray Pre-Eject Sensor

Program No. Menu Name Judgment method Remarks
306030210 FIN Upper Tray Pre-Eject Sensor Check by removing and inserting paper through the paper feed path. TRUE: Detection
FALSE: No Detection
Default: FALSE
  1. Open the Front Cover (A).
  2. Press the T3 and T4 levers to move them to the positions shown below.

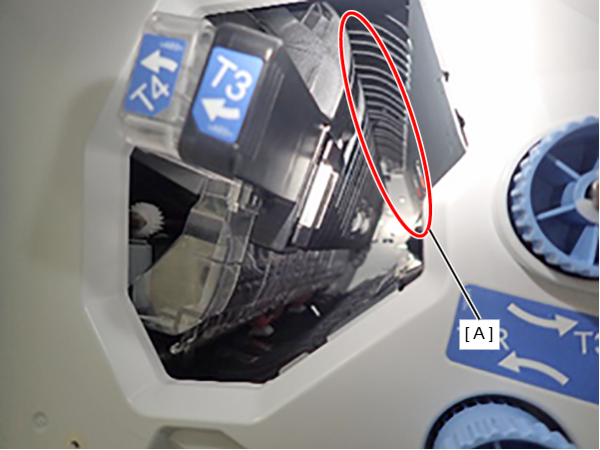

  3. Check the sensor detection status by inserting/removing a sheet of paper in/from the portion (A) shown below.
