307020206 IN FIN Pulling Paddle Release HP Sensor

Program No. Menu Name Judgment method Remarks

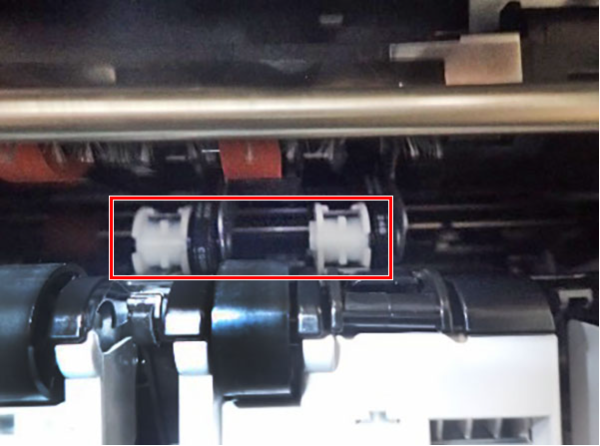

307020206 IN FIN Pulling Paddle Release HP Sensor Check the paddle shaft while moving it manually.

TRUE: No Detection
FALSE: Detection
Default: FALSE

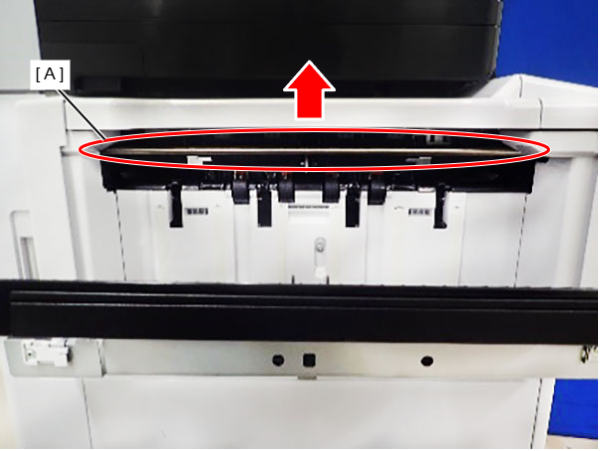

  1. Lift the Shaft (A) in the direction of the arrow.

    Caution / 注意

    Be careful not to touch the Anti Static Brush.

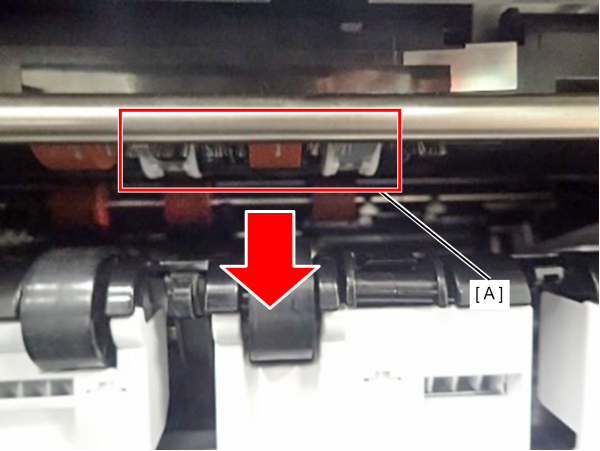

  2. Push the paddle shaft (A) in the direction of the arrow.


    * The sensor detection status returns to “TRUE” when you open and close the IN FIN cover.
