2040105 Straight Stack (Upper Tray)

Discharge paper to the  output tray (Upper Tray) of the finisher.

  1. Start the service support mode.

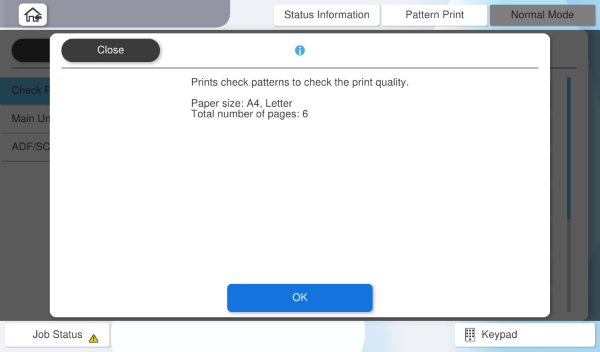

  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Finisher] tab.
  4. Select [2040105 Straight Stack (Upper Tray)].
  5. Press each setting item button to make the print settings.


    The parameters that can be set are as follows.

    Setting Items

    Selection
    Feed Tray C1, C2, C3, C4, Paper Tray
    Available Paper Sizes A4 (Vertical), Letter (Vertical), A3, Ledger
    Number of Feed 1 - 100 sheets
    Caution / 注意

    Make sure the paper orientation is as specified (LEF/Vertical).

    If the orientation is different from the specifications (SEF/Horizontal), the paper will be ejected without being processed correctly and the operation cannot be checked.
  6. Press [Execution] after completing the settings.
