Additional Cassette Unit

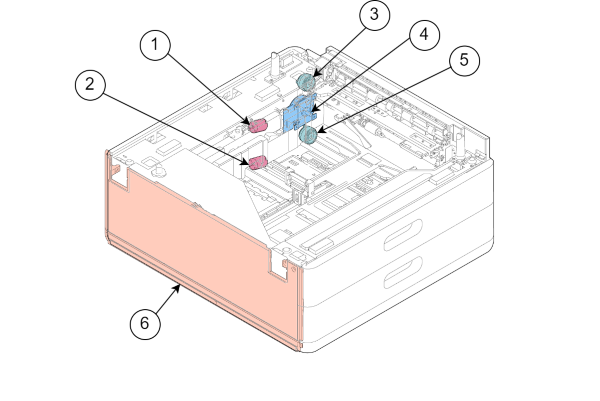

No. Name
1 C3 Liftup Motor
2 C4 Liftup Motor
3 C3 Pickup Clutch
4 Additional Cassette Drive Motor
5 C4 Paper Feed Clutch
6 Additional left Cover

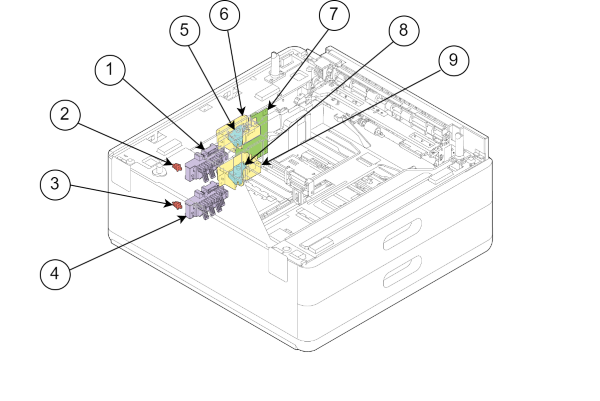

No. Name
1 C3 Paper Size Detection Sensor Assy
2 C3 Cassette Sensor
3 C4 Cassette Sensor
4 C4 Paper Size Detection Sensor Assy
5 C3 Damper
6 C3 Pulling Unit
7 Additional Main Board

8

 C4 Damper
9 C4 Pulling Unit
