Additional Cassette Drive Motor

  1. Open the additional cassette paper feed cover (A).
  2. Release the hook with a flathead screwdriver, etc., and remove the Additional Right Decorative Cover Rear (A).
  3. Remove the 3 screws and remove the Additional Rear Cover (A) in the direction of the arrow.

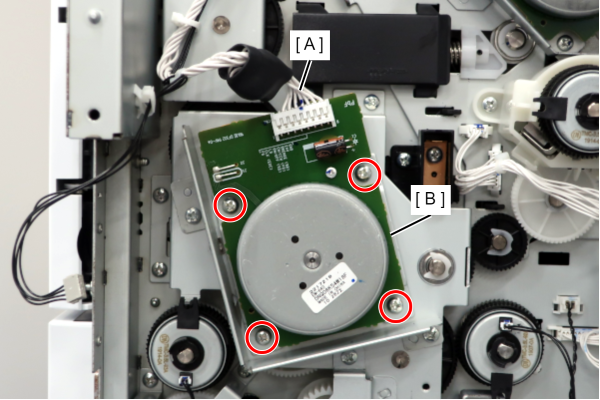

  4. Disconnect the cable (A) from the connector.
  5. Remove 4 screws and remove the Paper Feed Motor.

    • : 3x10DW/P

    • : 3x8D/P
