SDL Folding Blade Drive Motor

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.
  2. Refer to the following and remove the SDL Unit from the floor finisher.
    Saddle Unit Installation Procedure
    Caution / 注意
    • When disconnecting the Saddle Unit from the Floor Finisher Unit, the power of the Main Unit must be turned off.

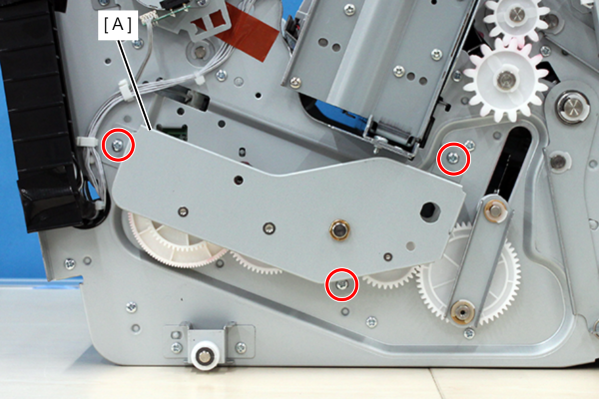

  3. Remove the 3 screws and remove the Folding Blade Drive Gear Assy (A).

    • : 3x8D

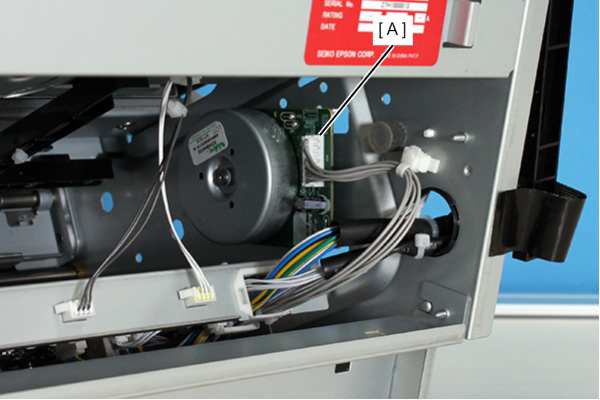

  4. Disconnect the cable from connector (A).

    • : 3x4D

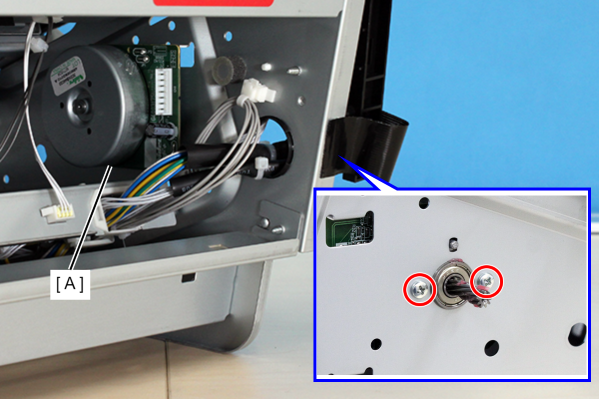

  5. Remove the 2 screws and remove the SDL Folding Blade Drive Motor (A).
