Reverse Drive Motor Assy

  1. Pull the lever to open the Right Door Unit (A).

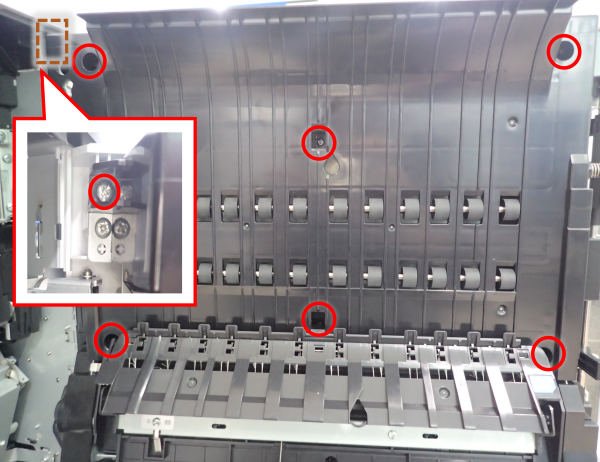

  2. Remove 7 screws.

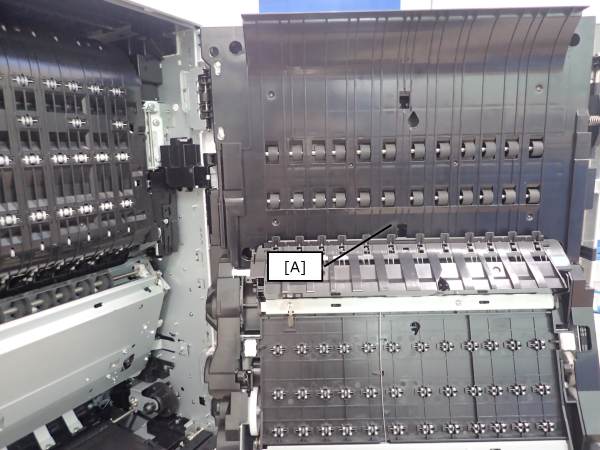

  3. Remove 2 screws and remove the Reverse Paper Path Guide (A).

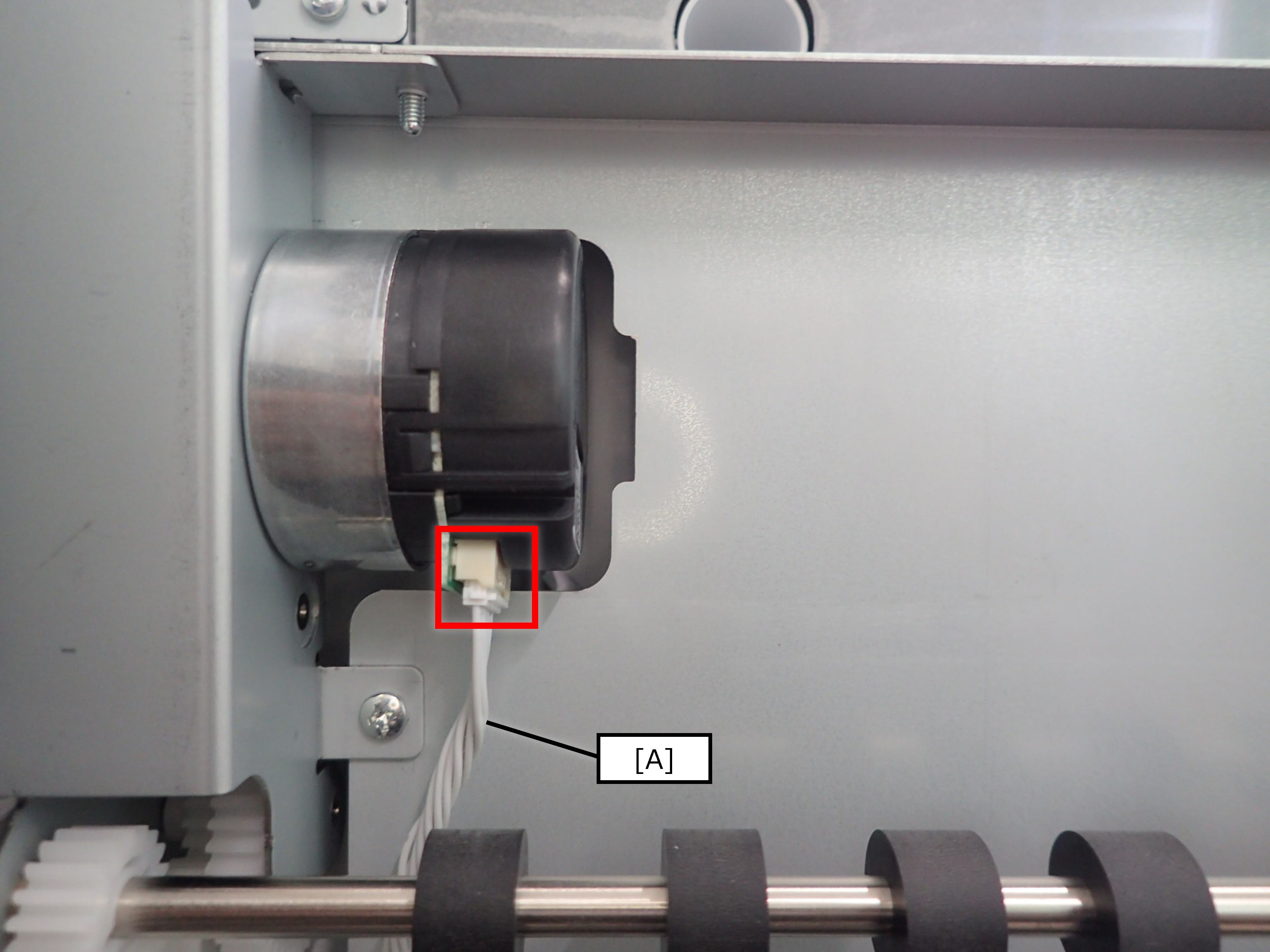

  4. Disconnect the cable (A) from the connector.

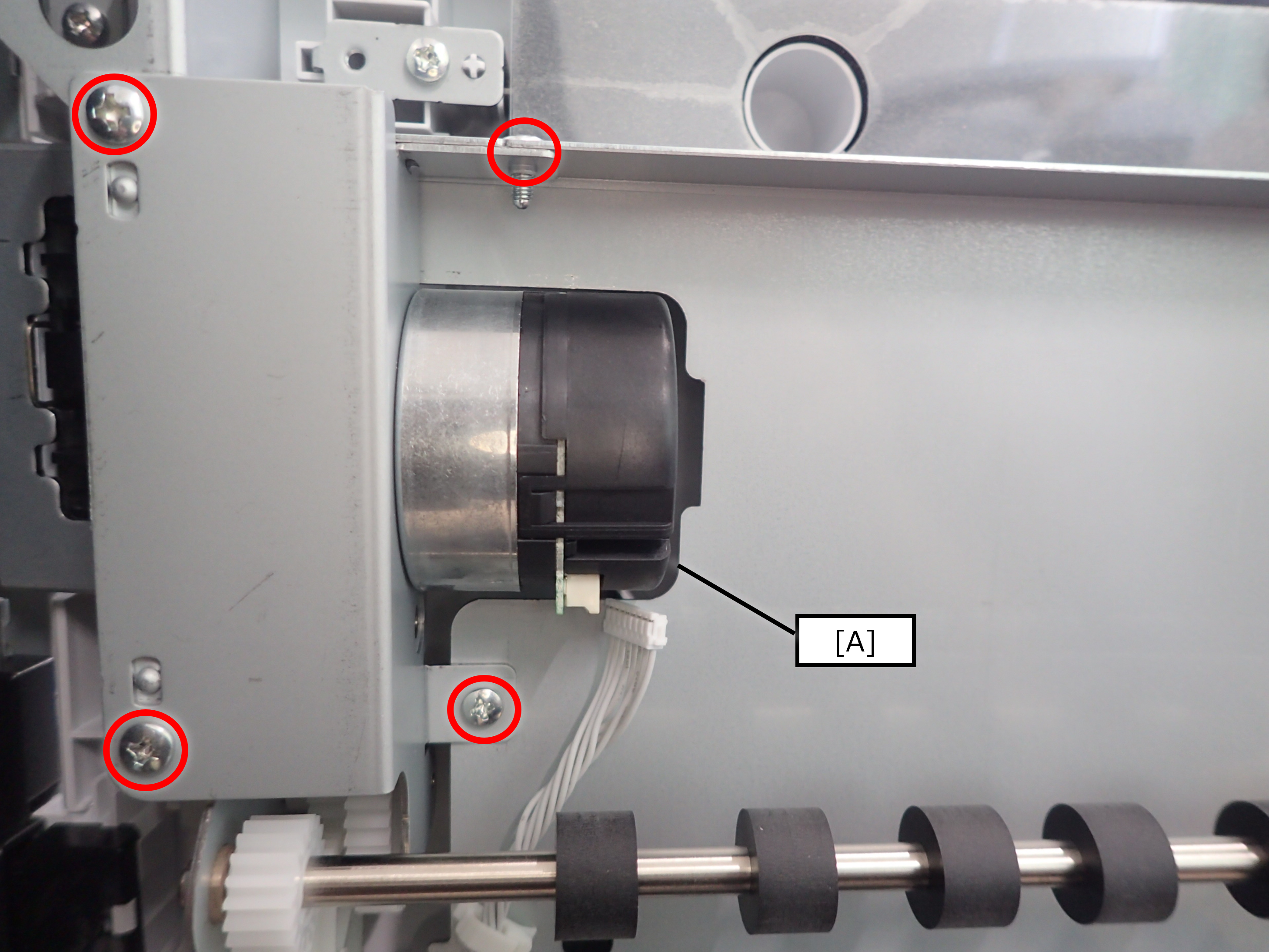

  5. Remove 4 screws and remove the Reverse Drive Motor Assy (A).
