SDL Eject Pressure Release Motor

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.
  2. Refer to the following and remove the SDL Unit from the floor finisher.
    Saddle Unit Installation Procedure
    Caution / 注意
    • When disconnecting the Saddle Unit from the Floor Finisher Unit, the power of the Main Unit must be turned off.
  3. Disconnect the cable from the connector (A) and release from the clamp (B).
  4. Remove 3 screws and remove the Tri-fold Paper Feed Path Switching Solenoid Assy (A).

    • : 3x8D

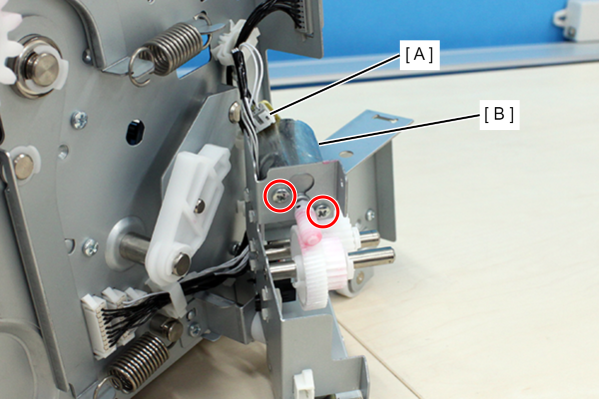

  5. Disconnect the cable from the connector (A), remove the 2 screws, and remove the SDL Discharge Pressure Release Motor (B).

    • : 3x4D
