Inner Finisher

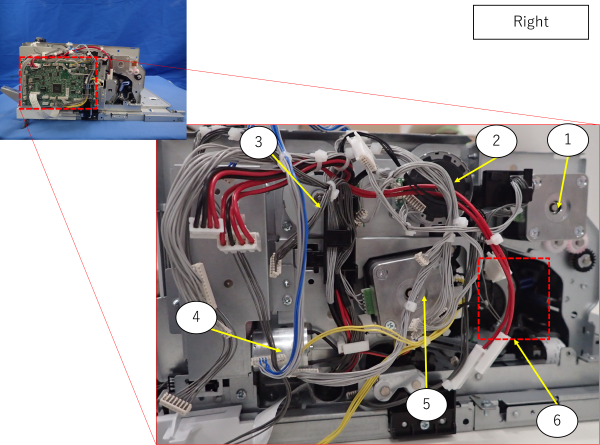

Motor / Solenoid

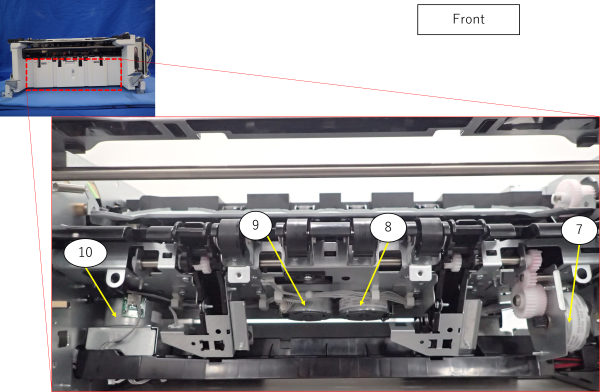

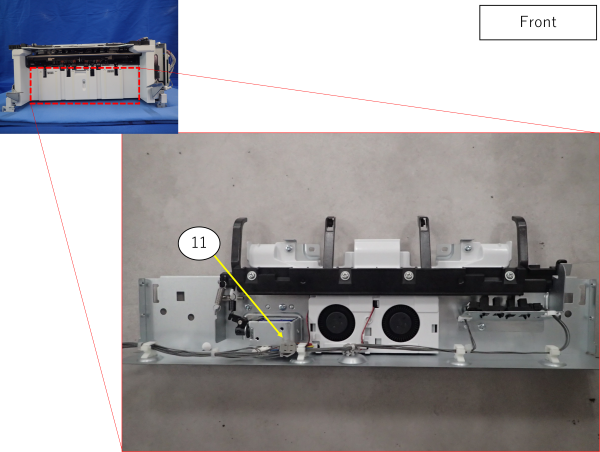

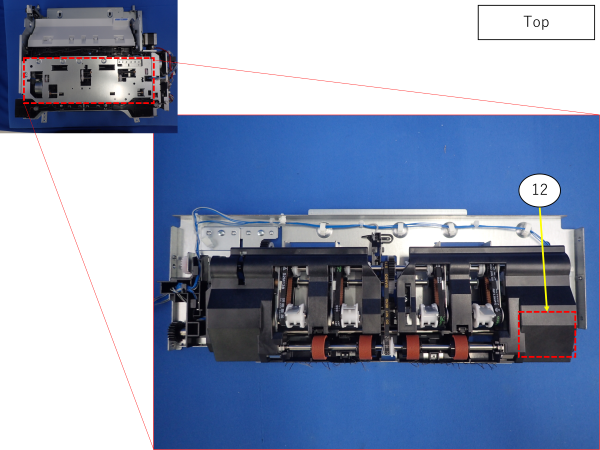

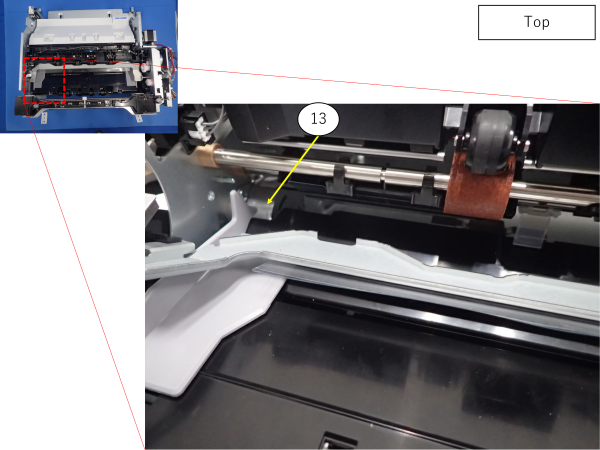

| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 1 | IN FIN Paper Transport Motor | Used for driving the paper transport roller in the Finisher paper loading section. | - | IN FIN Paper Transport Motor |
| 2 | IN FIN Paper Eject Motor/ IN FIN Pulling Paddle Motor | Used for driving the paper transport roller in the paper ejection section. | - | IN FIN Paper Eject Motor/ IN FIN Pulling Paddle Motor |
| 3 | IN FIN Bundle Eject Unit Drive Motor | Used for driving the Bundle Eject Unit. | - | IN FIN Bundle Eject Unit Drive Motor |
| 4 | IN FIN Tray Elevating Motor | Used to move the tray up and down. | - | IN FIN Tray Elevating Motor |
| 5 | IN FIN Middle Roller Drive Motor | Used for driving the paper feed roller in the Finisher paper feed path. | - | IN FIN Middle Roller Drive Motor |
| 6 | IN FIN Stapler Drive Motor | Used for staple drive of stapler. (Built into the stapler unit) | - | IN FIN Stapler Carriage Drive Motor |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 7 | IN FIN Paper Guide Drive Motor | - | - | |
| 8 | IN FIN Width Alignment Front Motor | Used to drive the width alignment cursor. |
- | IN FIN Width Alignment Motor Front/ Rear |
| 9 | IN FIN Width Adjustment Rear Motor | - | ||
| 10 | IN FIN Stapler Carriage Drive Motor | Used for drive the stapler carriage. | - | IN FIN Stapler Carriage Drive Motor |
| 11 | IN FIN Paper Rear Edge Holder Solenoid | Used for driving the paper rear edge holding lever. | - | IN FIN Paper Rear Edge Holder Solenoid |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 12 | IN FIN Pulling Paddle Release Drive Motor | Used for driving the pulling paddle. | - | |
| 13 | IN FIN Rear-edge Tapping Motor | - | - | IN FIN Rear-edge Tapping Motor |

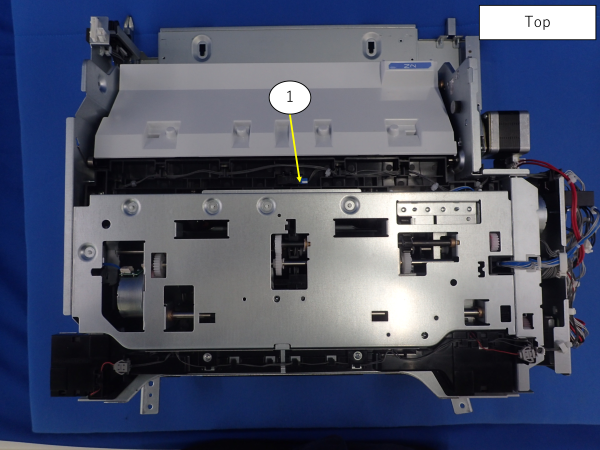

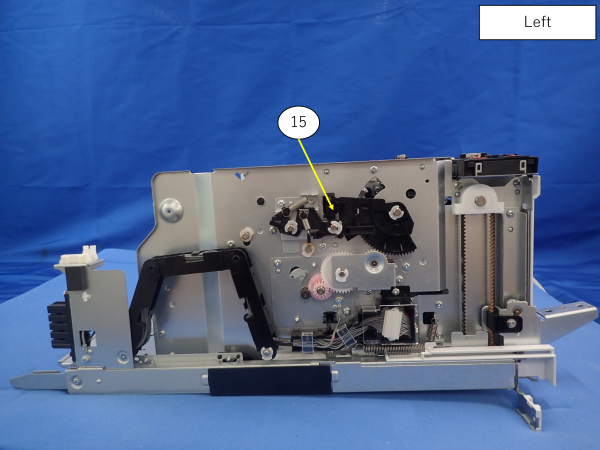

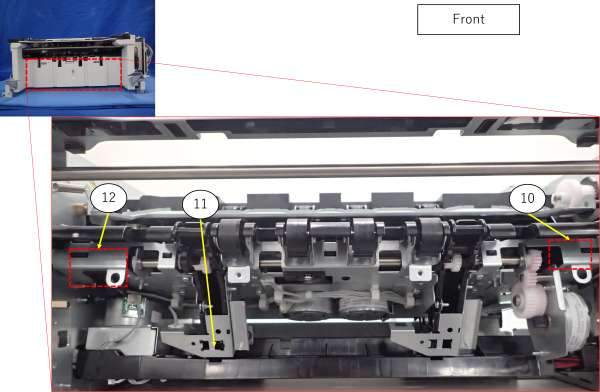

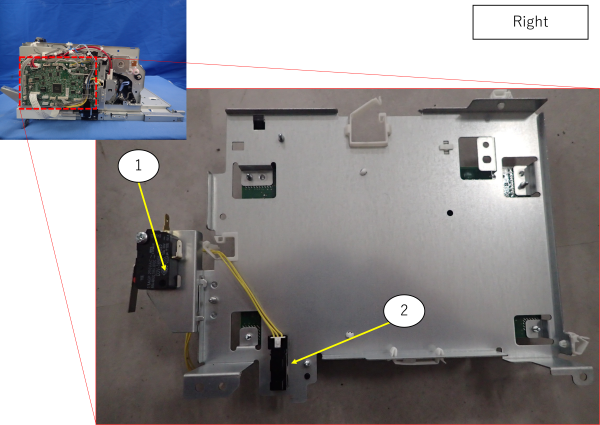

Sensors

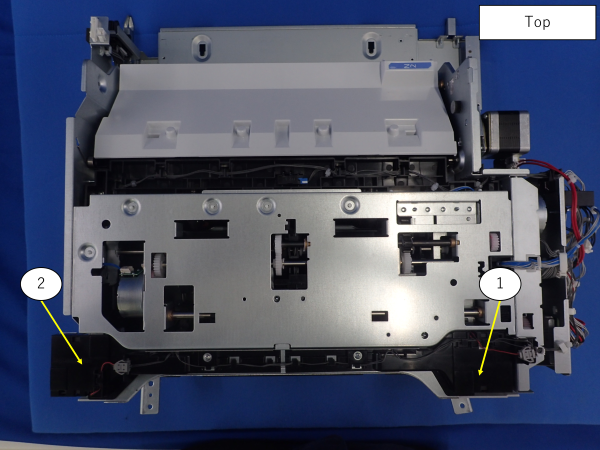

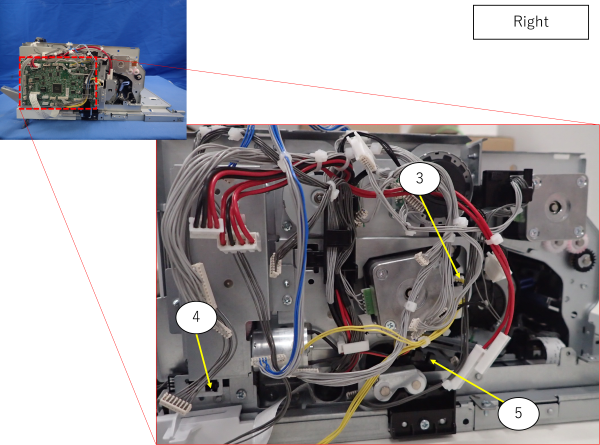

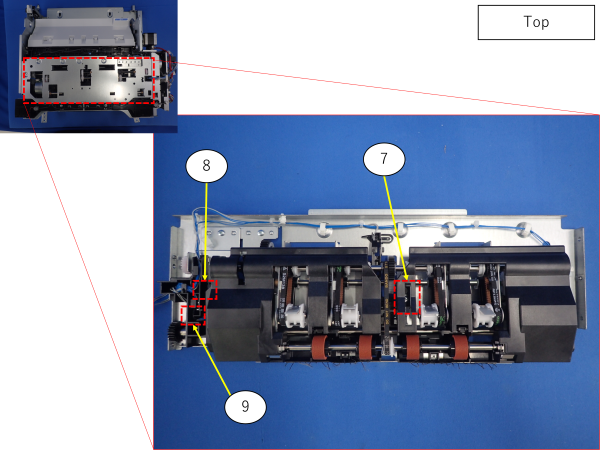

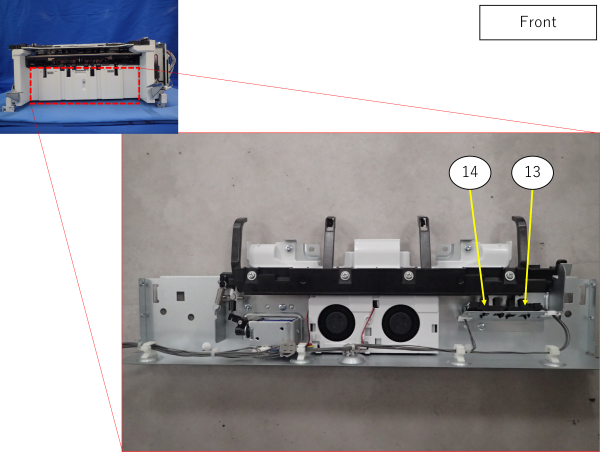

| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 1 | IN FIN Front Cover Sensor | Used to detect whether the front cover is open or closed. | Mechanical contact (interlock) | IN FIN Front Cover Sensor |
| 2 | IN FIN Unit Sensor | Used to detect for the Inner Finisher is extracted. | Transmission type photo interrupter | IN FIN Unit Sensor |
| 3 | IN FIN Alignment Paddle HP Sensor | Used for detecting the home position of the alignment paddle. | Transmission type photo interrupter | IN FIN Alignment Paddle HP Sensor |
| 4 | IN FIN Tray Lower Limit Sensor | Used for detecting the tray position (lowest position detection). | Transmission type photo interrupter | IN FIN Tray Lower Limit Sensor |
| 5 | IN FIN Stapler Carriage HP Sensor | Used for detecting the home position of the stapler carriage. | Transmission type photo interrupter | IN FIN Stapler Carriage HP Sensor |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 6 | IN FIN Paper Transport Sensor | Used for detecting residual paper jam in the paper path. | Reflective photo interrupter | IN FIN Paper Transport Sensor |
| 7 | IN FIN Processing Tray Paper Sensor | Used for detecting residual paper jam in the paper path. | Reflective photo interrupter | IN FIN Processing Tray Paper Sensor |
| 8 | IN FIN Paper Pulling Paddle HP Sensor | - | Transmission type photo interrupter | IN FIN Paper Pulling Paddle HP Sensor |
| 9 | IN FIN Pulling Paddle Release HP Sensor/IN FIN Bundle Ejection Unit HP Sensor | - | Transmission type photo interrupter | IN FIN Pulling Paddle Release HP Sensor/ Bundle Ejection Unit HP Sensor |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 10 | IN FIN Pre-Alignment Plate HP Sensor | Used for detecting the home position of the pre-alignment plate. | Transmission type photo interrupter | IN FIN Alignment Plate Front HP Sensor/ Alignment Plate Rear HP Sensor |
| 11 | IN FIN Paper Guide HP Sensor | - | Transmission type photo interrupter | IN FIN Paper Guide HP Sensor |
| 12 | IN FIN Alignment Plate Rear HP Sensor | Used for detecting the home position of the post-alignment plate. | Transmission type photo interrupter | IN FIN Alignment Plate Front HP Sensor/ Alignment Plate Rear HP Sensor |
| 13 | IN FIN Paper Rear Edge Holder HP Sensor 2 | Used for detecting the home position of the lever that holds down rear edge of paper. | Transmission type photo interrupter | IN FIN Paper Rear Edge Holder HP Sensor 1/2 |
| 14 | IN FIN Paper Rear Edge Holder HP Sensor 1 | Transmission type photo interrupter |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 15 | IN FIN Rear Edge Tapping HP Sensor | Used for detecting the home position of the paper rear edge tapping section. |
Transmission type photo interrupter | IN FIN Rear Edge Tapping HP Sensor |

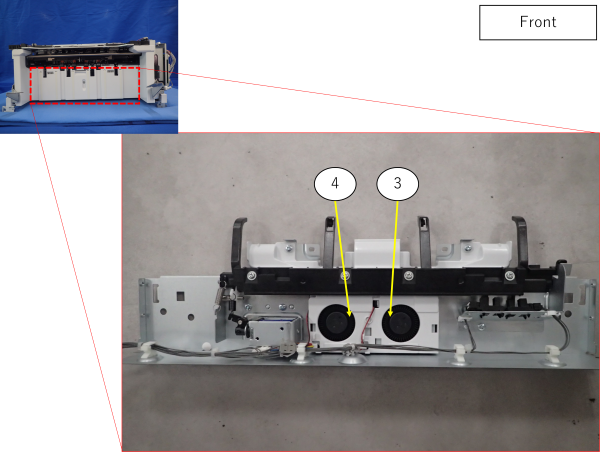

Fan
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 1 | IN FIN Bundle Eject Upper Front Fan |
- | - | |
| 2 | IN FIN Bundle Eject Upper Rear Fan |
- |
- | |
| 3 | IN FIN Bundle Eject Lower Rear Fan |
- |
- | |
| 4 | IN FIN Bundle Eject Lower Front Fan | - | - |
