Belt Lifting Motor Assy

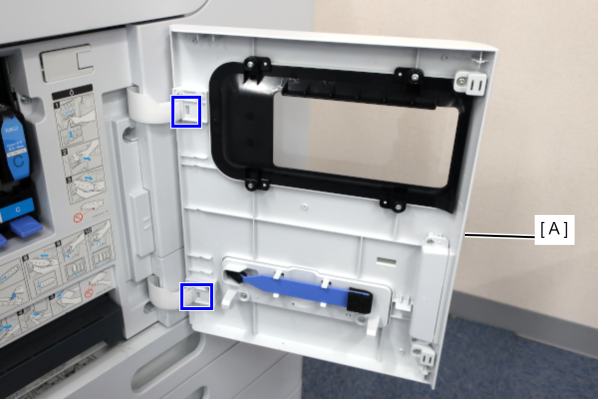

  1. Release the 2 dowels with a flathead screwdriver and remove the Front Cover (A).
  2. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW

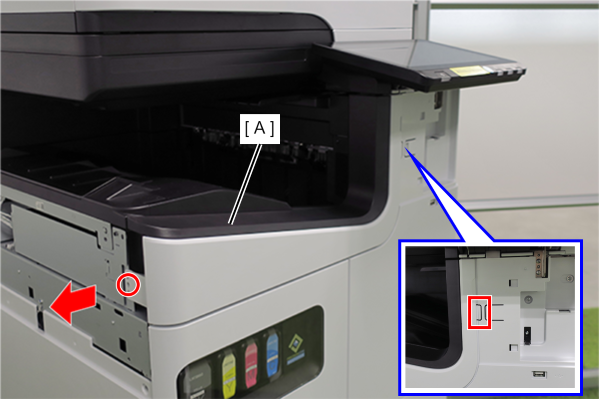

  3. Remove one screw, and remove the front cover upper (A) in the direction of the arrow while pressing the hook.

    • : 3x10DW

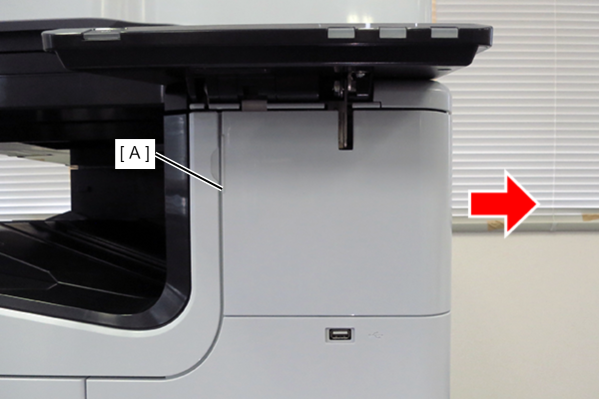

  4. Slide the front decorative cover upper (A) in the direction of the arrow to remove it.
  5. Release the hook and remove the Front Decorative Cover Lower (A) in the direction of the arrow.

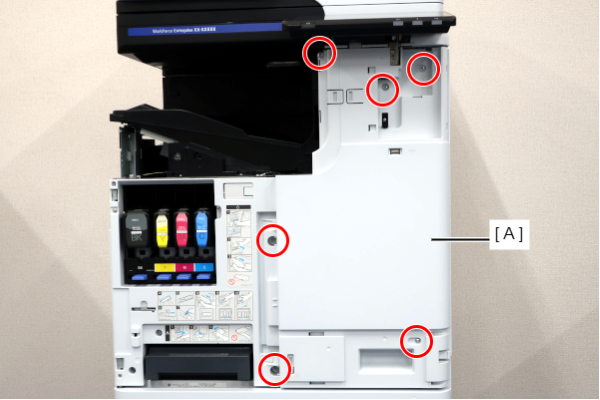

  6. Remove 6 screws and remove the Front Right Cover (A).

    • : 3x10DW/P

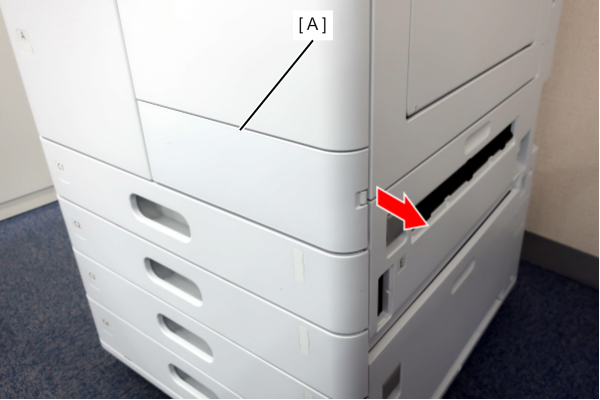

  7. Pull the lever to open the Right Door Unit (A).
  8. Pull the lever (A) to open the belt unit (B).
    1. Release the 2 clamps and remove the cable from the 2 connectors.

    2. Remove the 2 screws and remove the Belt Lifting Motor Assy (A).

      • : 3x8D/P
      Assembly / 組み立て

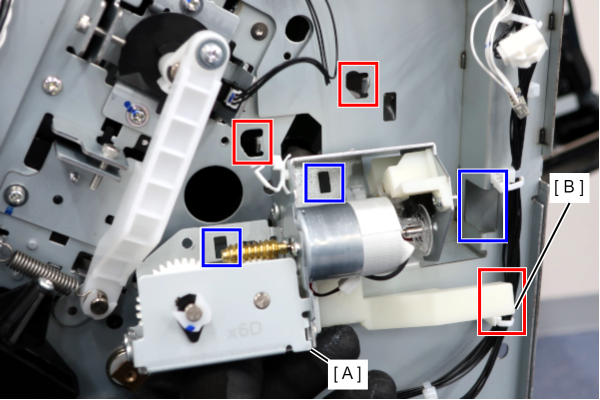

      • When assembling the Belt Lifting Motor Assy (A), insert the 2 protrusions on the main unit into the 2 notches on the Belt Lifting Motor Assy (A).
      • Insert the (B) part of the Belt Lifting Motor Assy (A) into the hole in the main unit.

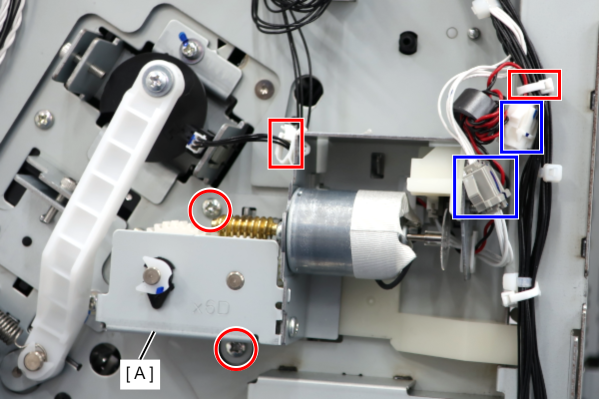

  9. Release the 2 clamps and remove the cable from the 2 connectors.

  10. Remove the 2 screws and remove the Belt Lifting Motor Assy (A).

    • : 3x8D/P
    Assembly / 組み立て
    • When assembling the Belt Lifting Motor Assy (A), insert the 2 protrusions on the main unit into the 2 notches on the Belt Lifting Motor Assy (A).
    • Insert the (B) part of the Belt Lifting Motor Assy (A) into the hole in the main unit.
