60103 PG Adjustment: Belt Unit

Corrects PG deviation caused by individual differences in related parts. Enter the correction value for the label attached to the belt unit.

  1. Start the service support mode.
  2. Select [06 Individual Adjustment].
  3. Select the [Main Unit・Additional Cassette] tab.

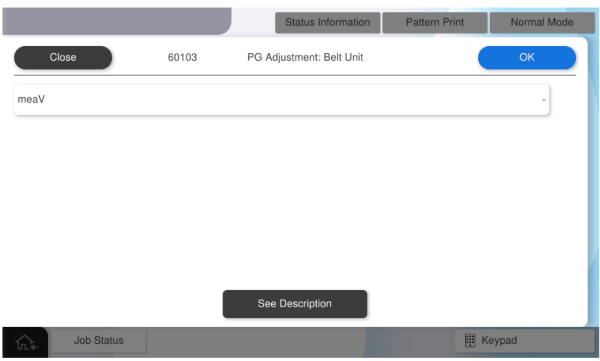

  4. Select [60103 PG Adjustment: Belt Unit].

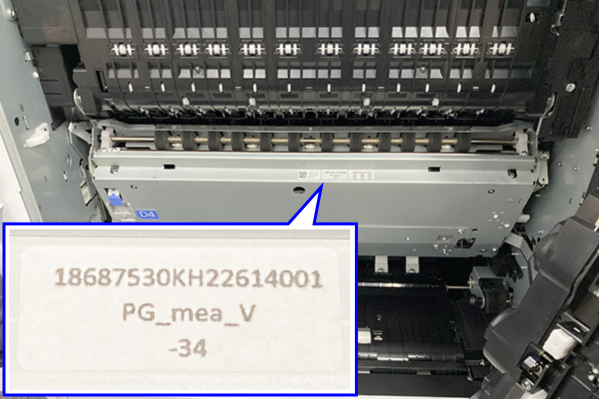

  5. Open the Right Door Unit and check the correction value label.
  6. Enter the correction value meaV.
  7. After entering all the values, press [OK].
