Before replacement work for Anti Static Brush Unit

  1. Start the service support mode.
  2. Select [05 Adjustment for Replacement Parts].
  3. Select [Main Unit] tab.
  4. Select [5010302 Anti Static Brush Unit].

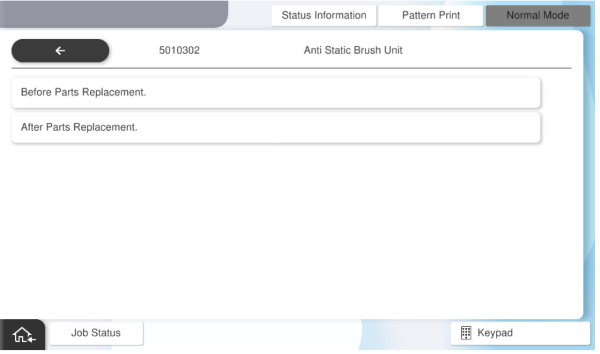

  5. Select [Before Parts Replacement]

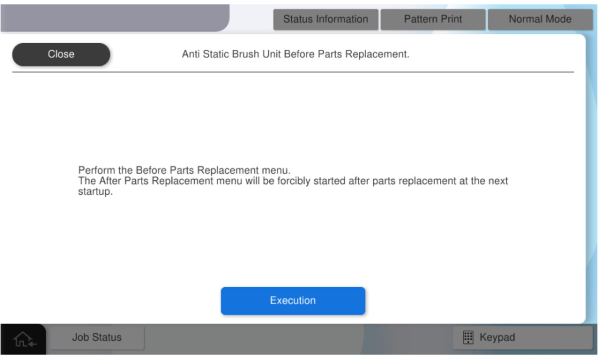

  6. Press [Execution].

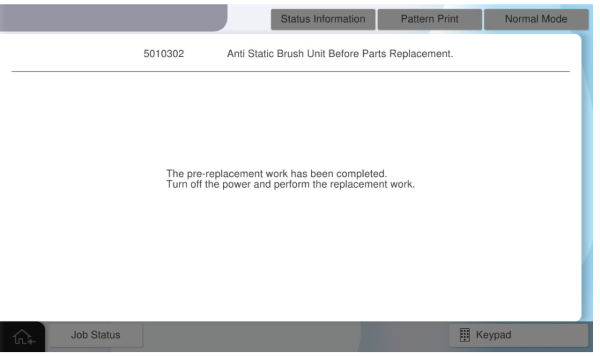

  7. Turn Off the main unit when the following screen is displayed.

    After replacement menu will start automatically at next startup.
