Lubrication
When an abnormal noise or fatal error occurs, refer to the work below and apply the specified amount of oil to the specified location.
Grease and oil
Type |
Name |
Part code |
|---|---|---|
Grease |
G-73 |
1407972 |
Grease |
G-97 |
1635441 |
Tools used
Tool name |
Availability |
Part code |
Remarks |
|---|---|---|---|
Syringe |
|
- |
For diameter Φ, follow the instructions in “Details of lubrication points” |
Brush |
|
- |
- |
Lubrication points for main unit

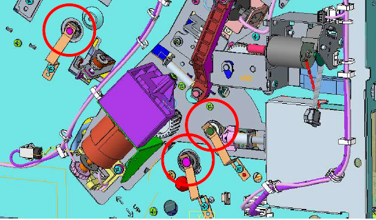

Lubricating between the head motion/conveyor belt drive roller shaft end face and ground spring
| Lubrication point | Between head motion/conveyor belt drive roller shaft end face and ground leaf spring |
|---|---|
| Oil type | G-73 |
| Application amount | Appropriate amount |
| Remarks | When the grease is insufficient, abnormal noise (squeaky noise) occurs when the head is raised or lowered or when the paper is transported. |

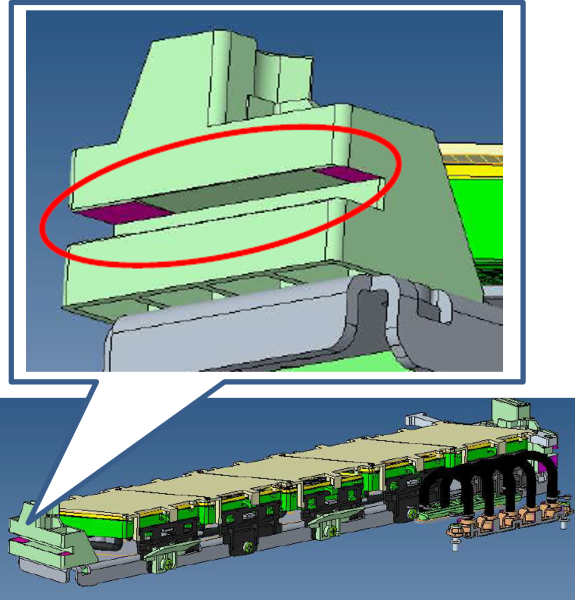

Lubricating the inner edges of the guides on both sides of the cap unit
| Lubrication point | Inside the guide (both sides) |
|---|---|
| Oil type | G-97 |
| Application amount | Appropriate amount |
| Remarks | When the grease is insufficient, the sliding load increases when the cap is raised and lowered, causing a fatal error. |

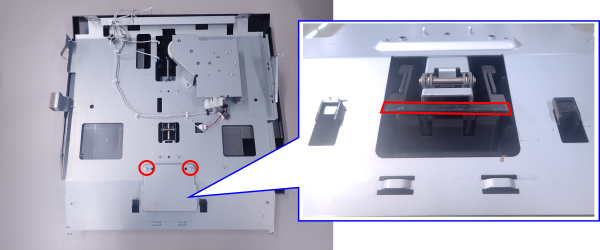

Lubrication to the bottom of the output tray ribs on the back of the FD stacker Assy.
| Lubrication point | Bottom of the output tray ribs on the back of the FD stacker Assy. |
|---|---|
| Oil type | G-97 |
| Application amount | Appropriate amount |
| Remarks | When the grease is insufficient, abnormal noise (squeaky noise) occurs when lifting the output tray ribs. |

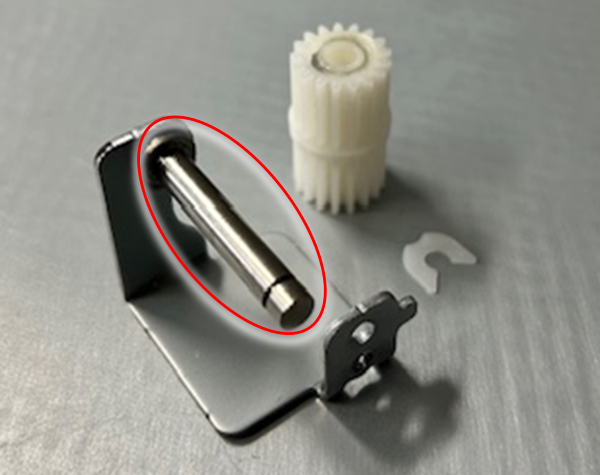

Lubrication to the shaft of the drive flame Assy
| Lubrication point | Lubrication to the shaft of the drive flame Assy |
|---|---|
| Oil type | G-97 |
| Application amount | Appropriate amount |
| Remarks | The ASP of drive frame Assy is supplied as a set consisting of drive frame, gears, and plastic E-rings. Lubrication is required when assembling the drive frame Assy. |

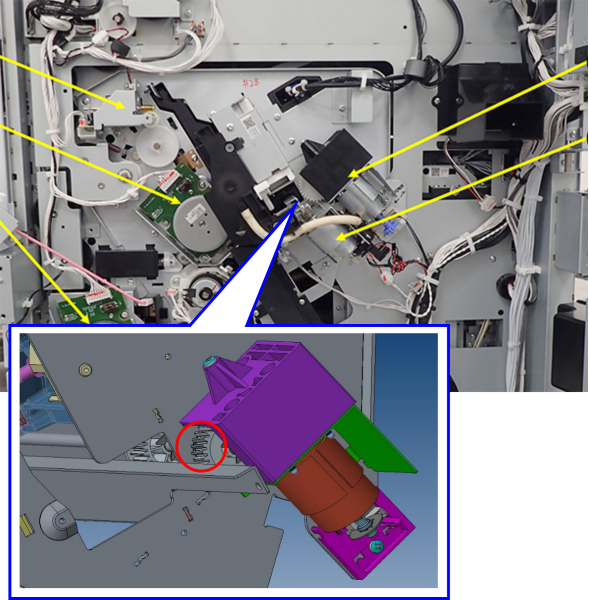

Lubrication to the Head Lifting Motor
| Lubrication point | Gear of the Head Lifting Motor |
|---|---|
| Oil type | G-97 |
| Application amount | Appropriate amount |
| Remarks | When applying, rotate the gear and apply to the entire circumference of the gear. When grease is insufficient, gear wear, abnormal noise during head elevation operation, and fatal errors may occur. |

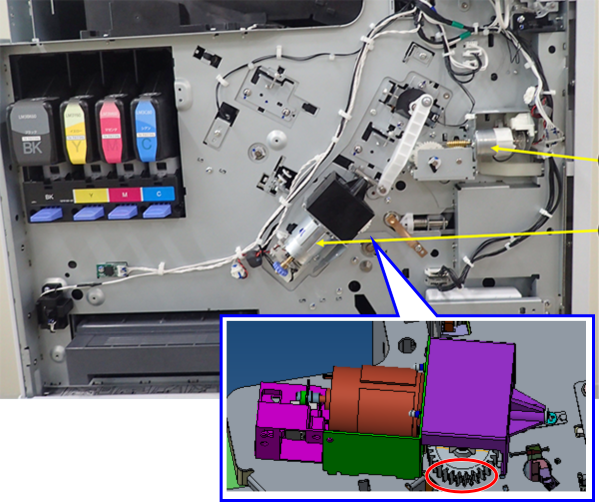

Lubrication to the Cap Drive Motor
| Lubrication point | Gear of the Cap slide motor |
|---|---|
| Oil type | G-97 |
| Application amount | Appropriate amount |
| Remarks | When applying, rotate the gear and apply to the entire circumference of the gear. When grease is insufficient, gear wear, abnormal noise during cap slide operation, and fatal errors may occur. |
