Electric
| No. | Name |
|---|---|
| 1 | Font Cover Sensor |
| 2 | Power Supply Box |
| 3 | Main Board |

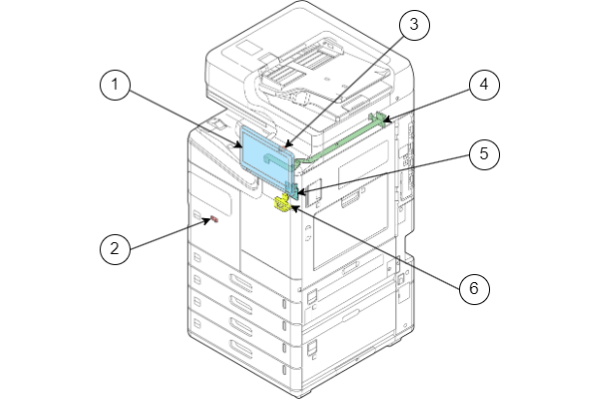

| No. | Name |
|---|---|
| 1 | Panel Unit |
| 2 | Temp/ Humidity Sensor |
| 3 | Speaker |
| 4 | Panel FFC |
| 5 | USB Port Assy (Authentication Printing) |
| 6 | USB Port Assy (USB Memory) |

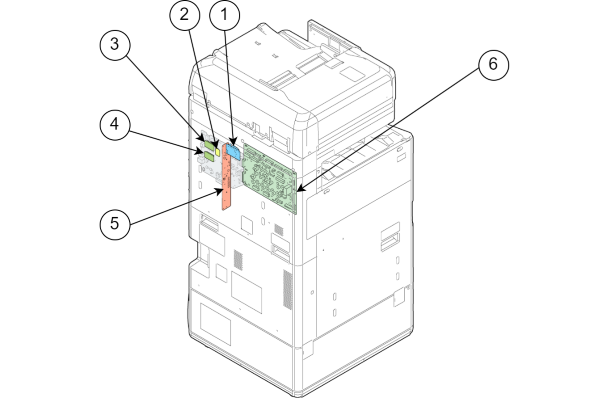

| No. | Name |
|---|---|
| 1 | Out-ringer Board |
| 2 | TPM Board |
| 3 | Mechanical Information ROM Board |
| 4 | User Information ROM Board |
| 5 | I/F Board |
| 6 | MCU Board |

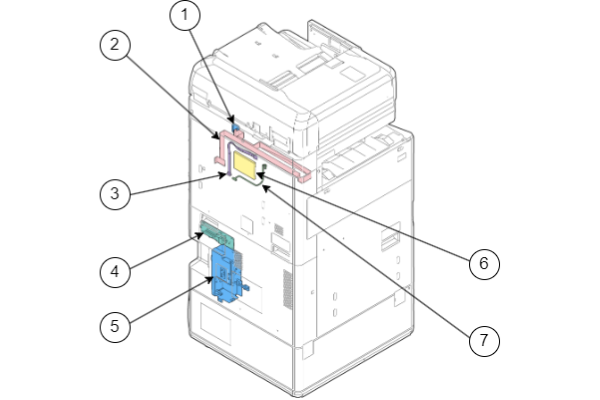

| No. | Name |
|---|---|
| 1 | SCN Relay Board |
| 2 | Main Board FFC |
| 3 | HDD Cable (SATA) |
| 4 | High Voltage Board |
| 5 | Inlet Assy |
| 6 | HDD (Standard) |
| 7 | HDD Cable (Discrete Wire) |
