301040204 Belt Tension Release HP Sensor

Program No. Menu Name Judgment method Remarks
301040204 Belt Tension Release HP Sensor Check the sensor by opening/closing the D4 paper jam handling guide.

TRUE: No Detection
FALSE: Detection
Default：TRUE

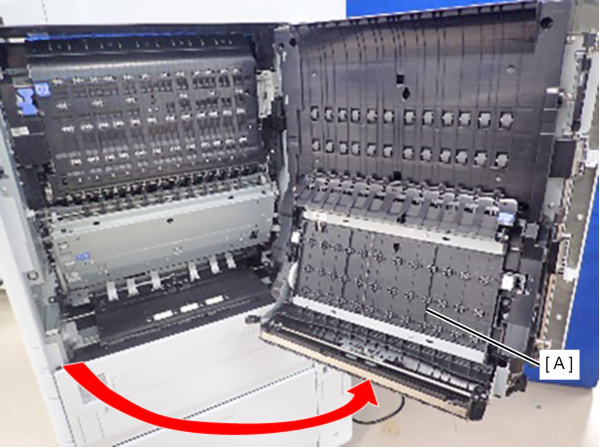

  1. Open the right door unit (A).

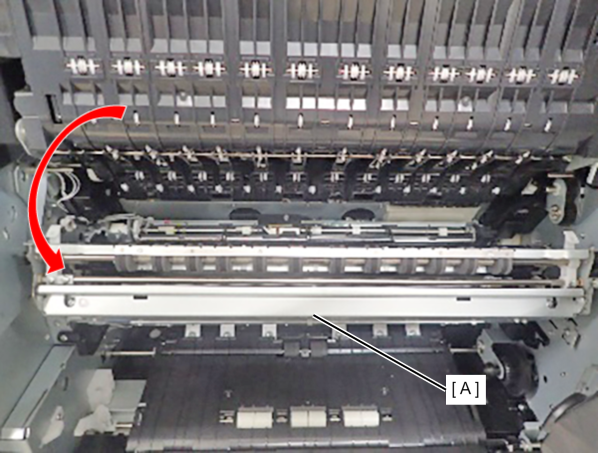

  2. Check the sensor detection status by opening the D4 paper jam handling guide (A).
