Torque Limiter


  1. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW
  2. Remove one screw, and remove the front cover upper (A) in the direction of the arrow while pressing the hook.

    • : 3x10DW
  3. Slide the front decorative cover upper (A) in the direction of the arrow to remove it.

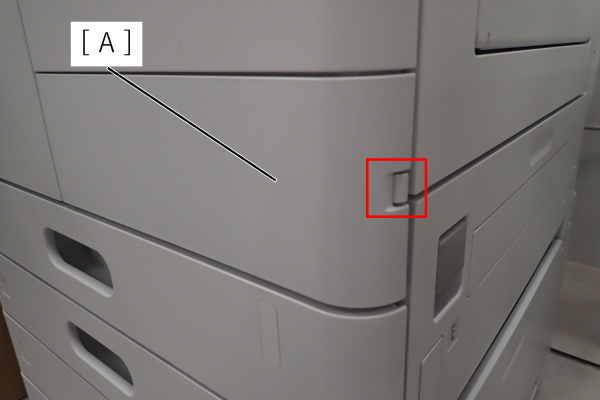

  4. Remove Housing front lower (A) from the main unit.

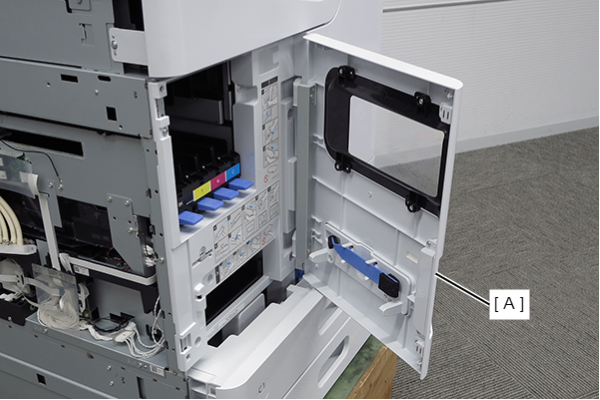

  5. Open the front cover (A).

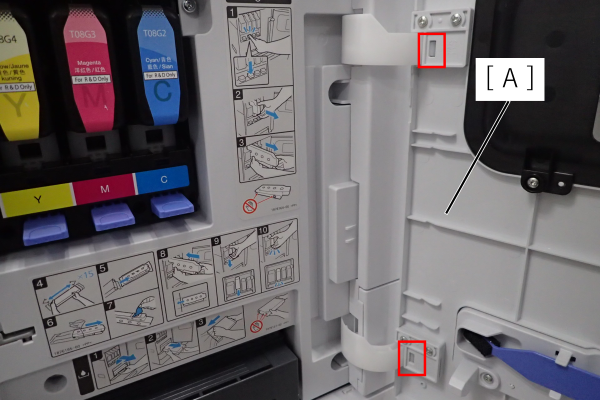

  6. Push the hook on the Front cover (A) and remove the Front cover (A).

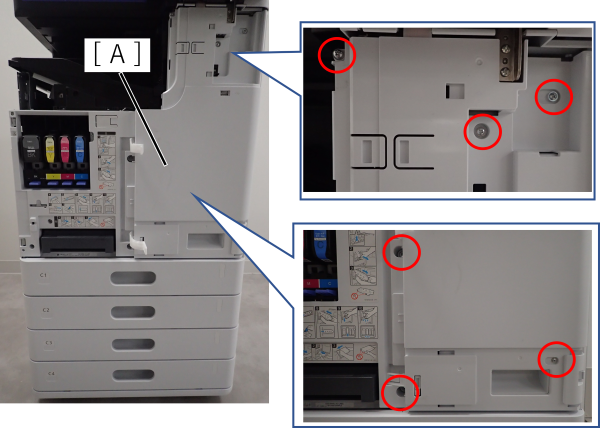

  7. Remove 6 screws and remove the Front right cover (A).

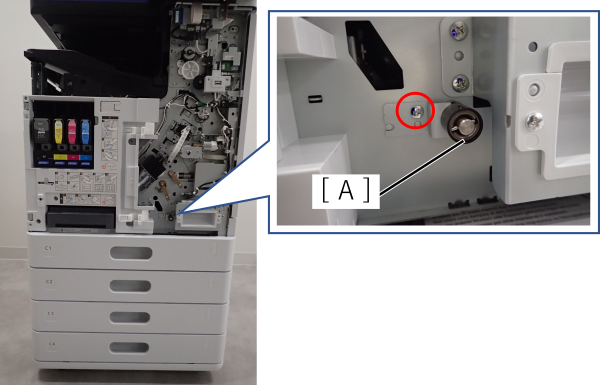

  8. Remove one screw and remove the fixing plate of the Torque limiter (A).

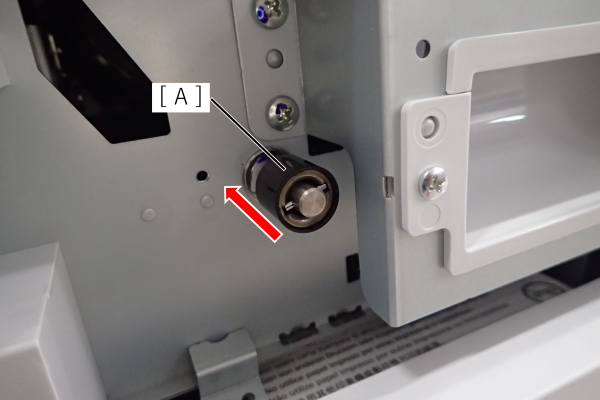

  9. Slide the Torque limiter (A) toward the back.

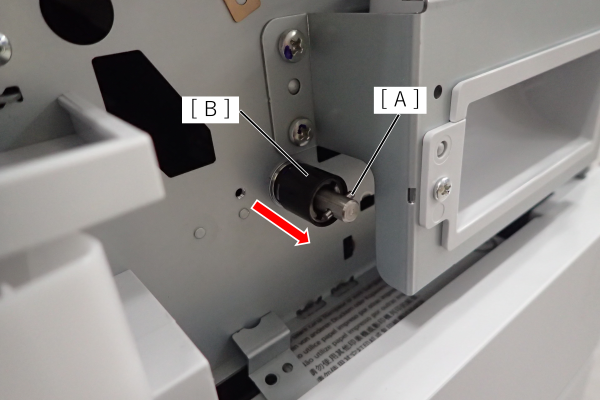

  10. Remove the pin (A) and remove the Torque limiter (B).
