1st Paper Eject Tray Pre-Eject Sensor

1st Paper Eject Tray Pre-Eject Sensor
Position

  1. Pull the lever to open the Right Door Unit (A).

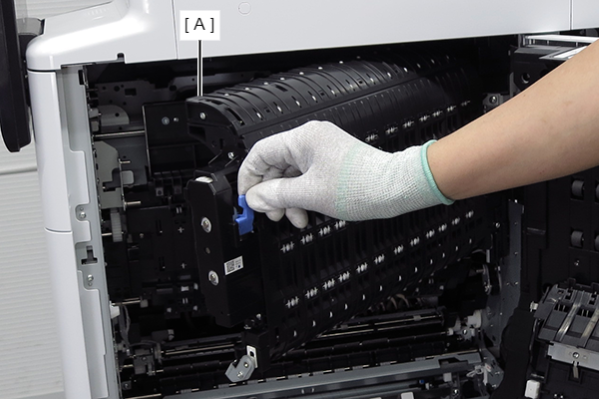

  2. Pull the lever to open the D3 Unit (A).

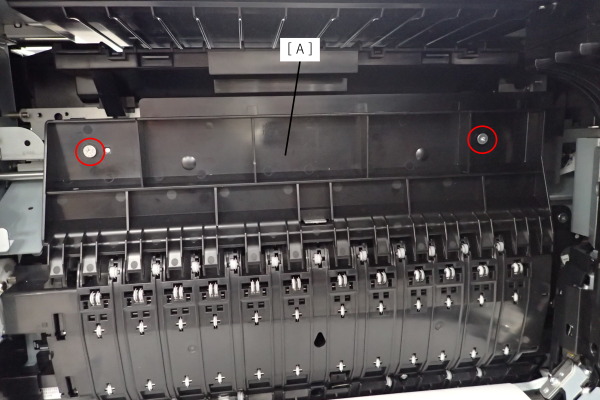

  3. Remove 2 screws and remove the Paper Guide (A).

    • : 3x5D/TBD

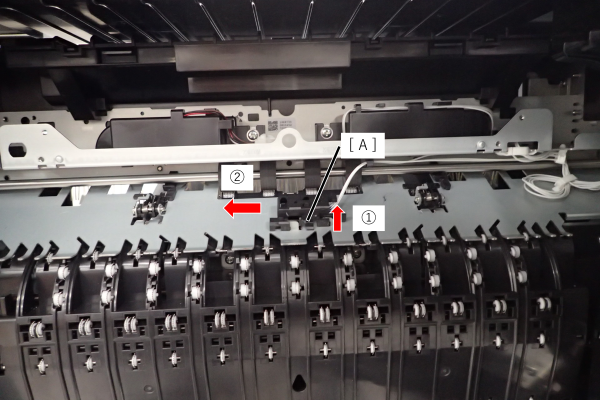

  4. Push the lever (A) of the 1st Paper Eject Tray Pre-Eject Sensor in the direction of arrow (1) and slide it in the direction of arrow (2) to remove it from the sheet metal.

Cleaning method

Wipe the sensor surface with the sponge part of the cleaner stick lightly. If the sponge becomes dirty, wipe with a clean cloth moistened with pure water by gently stroking the surface of the sponge.
