60105 Head Data Transfer: Before Head Replacement

Transfer the information saved in the main unit to the head unit before replacement the head unit.

  1. Start the service support mode.
  2. Select [06 Individual Adjustment].
  3. Select the [Main Unit・Additional Cassette] tab.

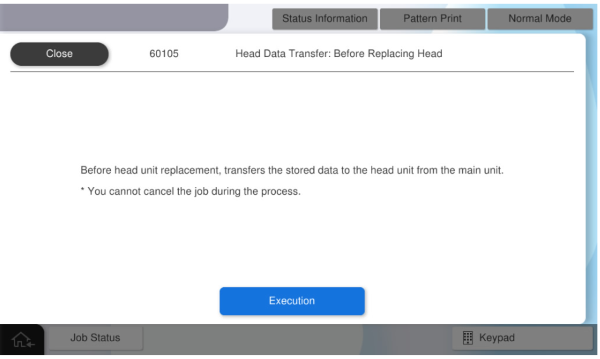

  4. Select [60105 Head data transfer: Before Replacing Head].
  5. Press [Execution].
  6. Press [OK] to complete the adjustment.
