ADF Paper Feed Path
Cleaning purpose
Paper dust and foreign objects cause problems with paper feeding, paper passing, and image quality.
Position
- Open the ADF cover (B) while pulling the lever (A).

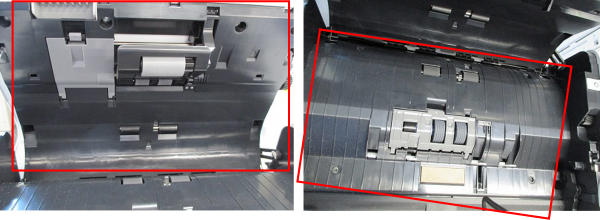

- ADF Pickup Roller
- Around the ADF reading glass cover
Cleaning method
Clean the paper feed path in the red frame with a damp and wrung-out cloth.
