C1 - C4 Pickup Roller

Position

  1. Pull the lever to open the main unit paper feed cover (A).

  2. Remove the C1 cassette (A).

    Assembly / 組み立て

    The corresponding cassette can be replaced with another cassette.
    In that case, follow the steps below.

    1. Loosen the two screws on the dial (A) and align the groove on the bearing (B) with the dowel on the dial (A).
    2. Replace the label (A) on the cassette.

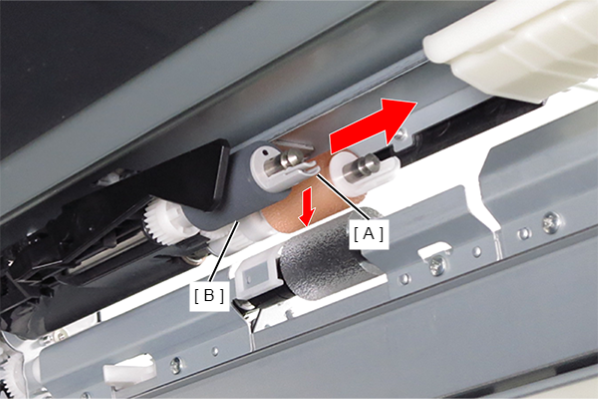

  3. While pushing the hook (A), remove the C1 pickup roller (B) in the direction of the arrow.


    Assembly / 組み立て

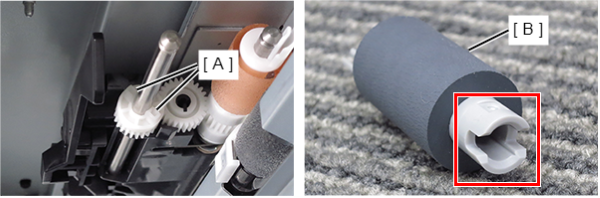

    Align the protrusion (A) of the gear with the groove of the pickup roller (B).


Cleaning method

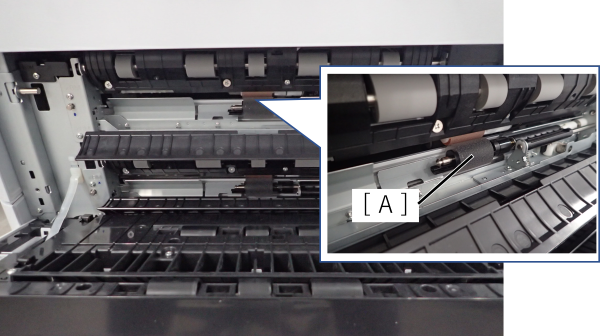

Clean the Pickup Roller (A) using a soft cloth moistened with pure water.

important / 重要
  • Do not use a dry cloth as it may damage the roller surface.
