Gear 1 (diameter 35)

  1. Release the 2 dowels with a flathead screwdriver and remove the Front Cover (A).
  2. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW
  3. Remove one screw, and remove the front cover upper (A) in the direction of the arrow while pressing the hook.

    • : 3x10DW
  4. Slide the front decorative cover upper (A) in the direction of the arrow to remove it.
  5. Release the hook and remove the Front Decorative Cover Lower (A) in the direction of the arrow.
  6. Remove 6 screws and remove the Front Right Cover (A).

    • : 3x10DW/P

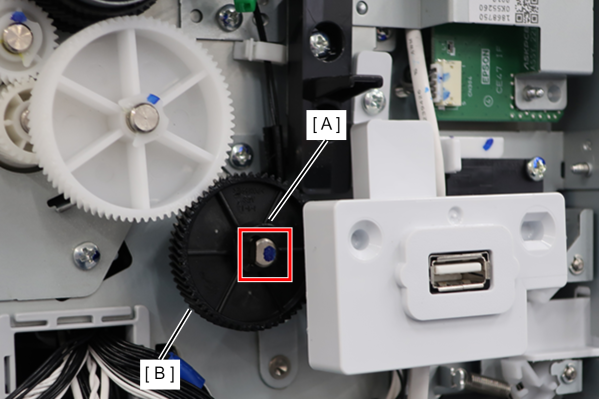

  7. Remove the E-ring (A) and remove the Gear 1 (diameter 35) (B).

    Assembly / 組み立て

    When installing Gear 1 (diameter 35), align the D-cut shape of the installation shaft and the hole.
