306050201 SDL Paper Transport Sensor

Program No. Menu Name Judgment method Remarks
306050201 SDL Paper Transport Sensor Check by passing the paper through the paper feed path. TRUE: Detection
FALSE: No Detection
Default: FALSE
  1. Open the U1 Cover (A).
  2. Push the U2 (A) in the direction of the arrow.

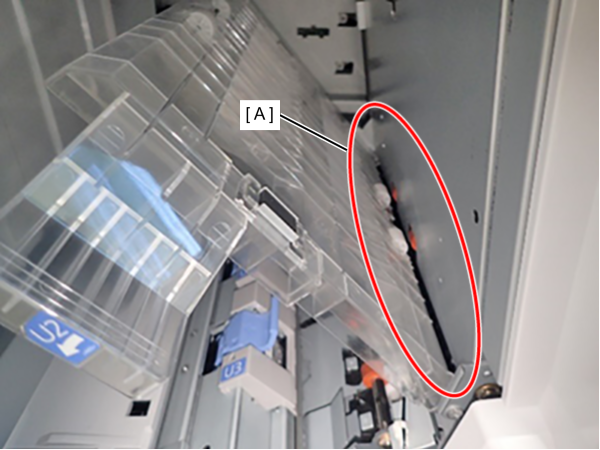

  3. Check the sensor detection status by inserting a sheet of paper in the portion (A) shown below.
