Power Supply Box

Check Point / チェックポイント

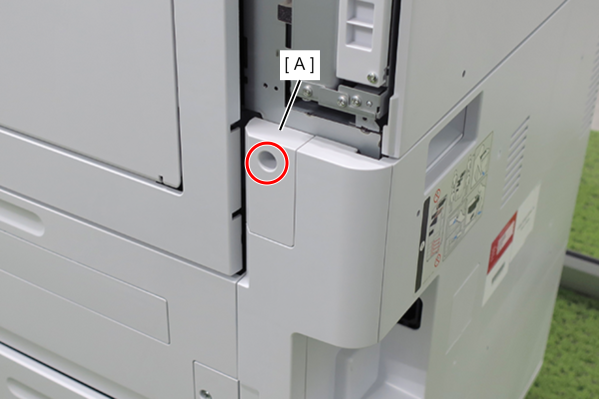

  • When replacing the Power Supply Box, attach the PS Polyester Film to the connector area on the left side of the replacement Power Supply Box.
  • It is necessary to purchase PS Polyester Film (Ref: 383) through ASP.

  1. Remove 1 screw and remove the Left Cover Sub Lower (A) in the direction of the arrow.

    • : 3x10DW
  2. Remove the 1 screw and remove the right cover sub lower (A).
    • : 3x10DW
  3. Remove one screw and remove the Rear cover lower (A) in the direction of the arrow.

    • : 3x10DW

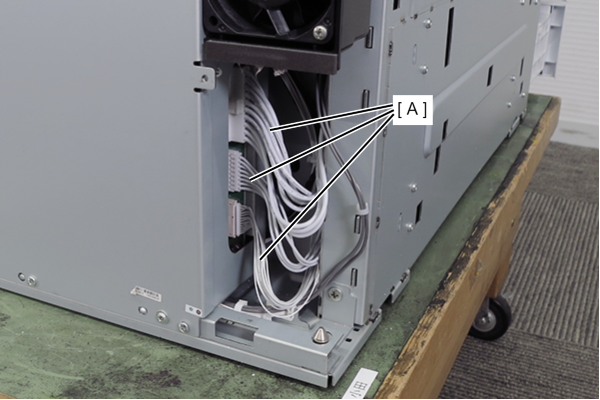

  4. Remove the cables (A) from the 3 connectors.

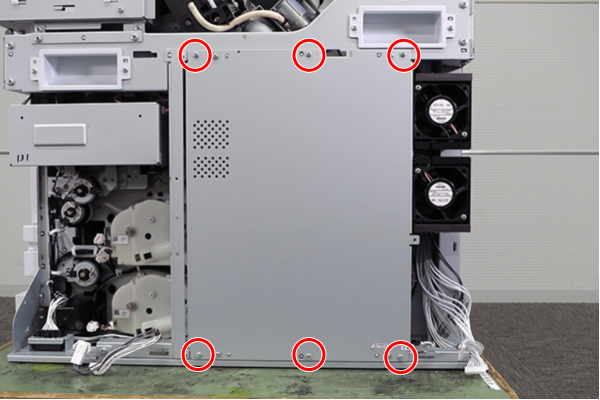

  5. Remove 6 screws.

    • : 3x8D

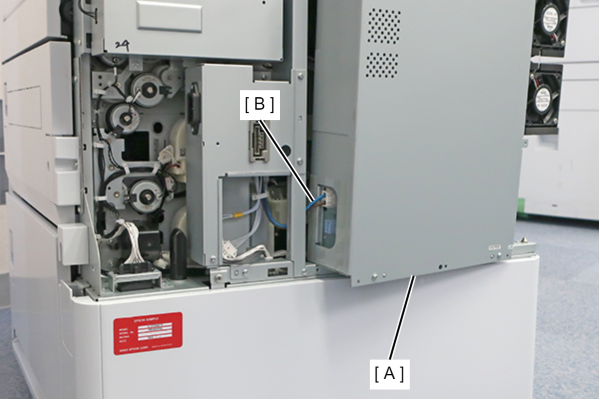

  6. Disconnect the cable (B) from the connector on the power supply box (A).

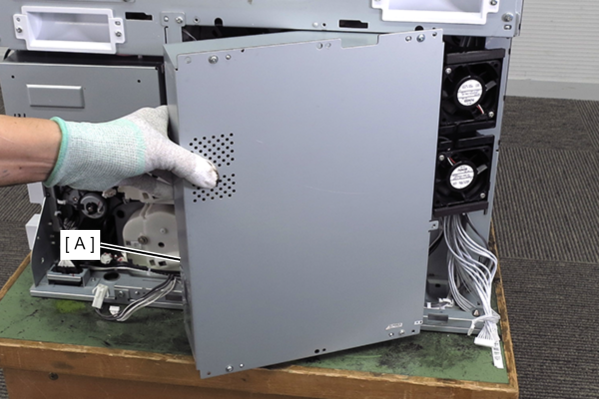

  7. Remove the power supply box (A).


    Assembly / 組み立て

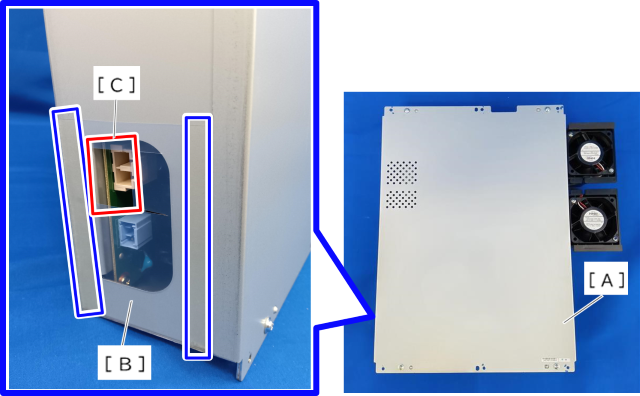

    • Attach the PS Polyester Film (B) to the replacement Power Supply Box (A) as shown below.
      When attaching the PS Polyester Film (B), make sure the hole (C) in the film is facing up.
