C4 Cassette Sensor

  1. Open the additional cassette paper feed cover (A).
  2. Release the hook with a flathead screwdriver, etc., and remove the Additional Right Decorative Cover Rear (A).
  3. Remove the 3 screws and remove the Additional Rear Cover (A) in the direction of the arrow.

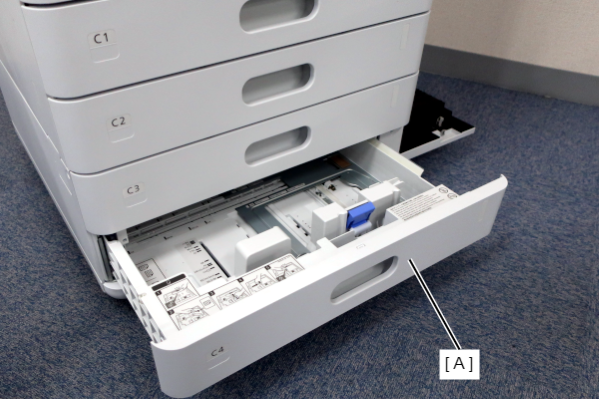

  4. Pull out the C4 cassette (A). (about 10 cm)

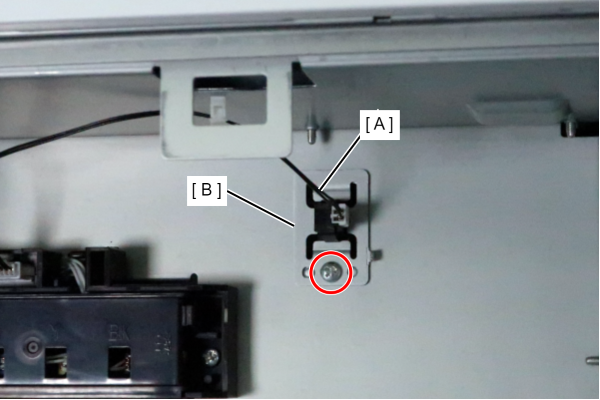

  5. Disconnect the cable (A) from the connector.
  6. Remove the1 screw and remove the C3 Sensor Assy (B).

    • : 3x8D/P

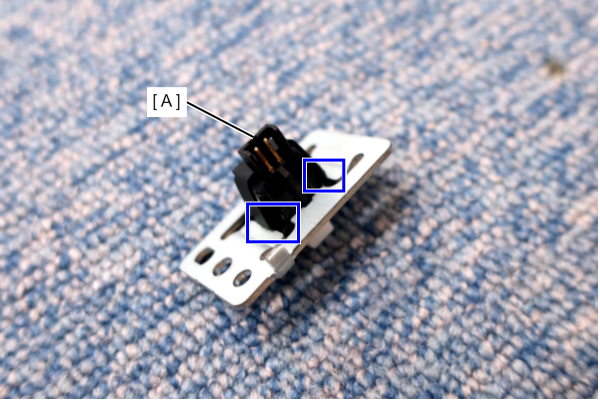

  7. Release the 2 hooks and remove the C4 Cassette Sensor (A).

    Assembly / 組み立て

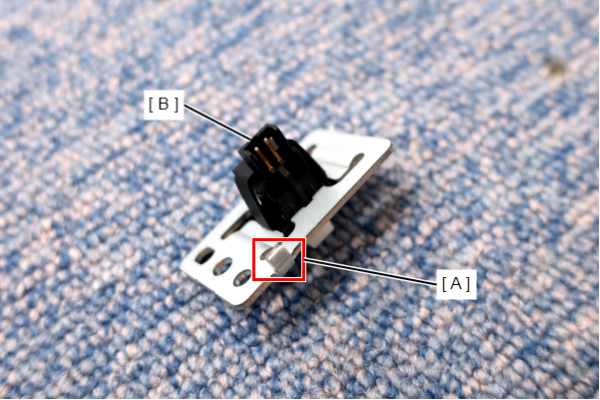

    Install the C4 Cassette Sensor by aligning the connector part (B) in the direction that the hook (A) of the frame points.

    • : 3x10DW/P
