307030201 IN FIN Paper Rear Edge Holder HP Sensor 1

Program No. Menu Name Judgment method Remarks
307030201 IN FIN Paper Rear Edge Holder HP Sensor 1 Manually lower the Paper Rear Edge Holder Lever slowly and check. TRUE: No Detection
FALSE: Detection
Default: FALSE

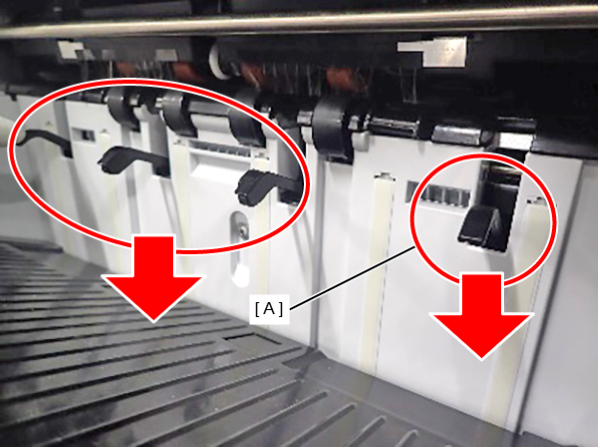

  1. Check if the sensor detects the Paper Rear Edge Holder Lever (A) by pulling it out and back.
