301020212 C2 Cassette Sensor

Program No. Menu Name Judgment method Remarks
301020212 C2 Cassette Sensor

Check the sensor by pushing it by hand.

TRUE: No Cassette
FALSE: With Cassette
Default: FALSE

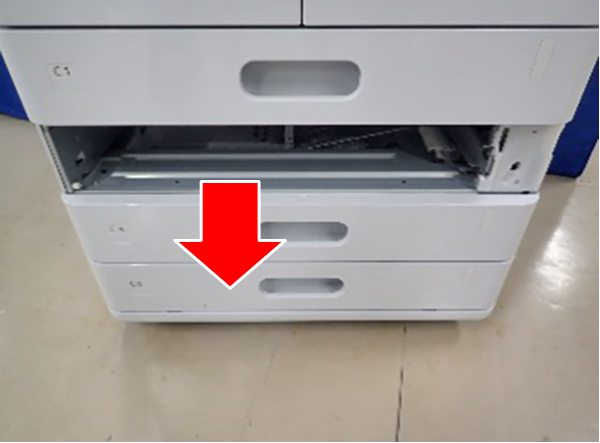

  1. Remove the C2 cassette.

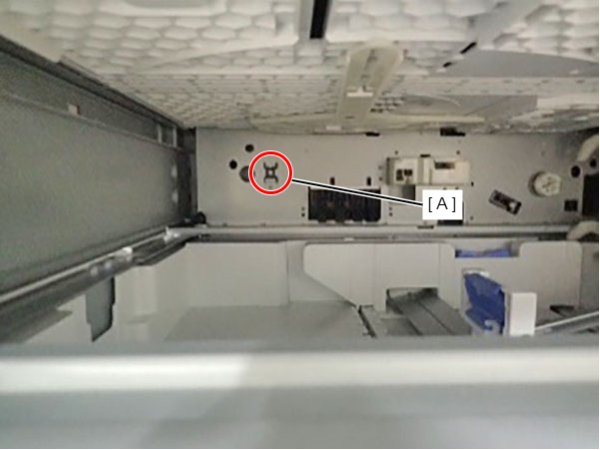

  2. Push the sensor (A) in the figure below to check the sensor detection status.
