Before replacement work for Cassette(C3/C4)

  1. Start the service support mode.
  2. Select [05 Adjustment for Replacement Parts].
  3. Select the [Additional Cassette] tab.

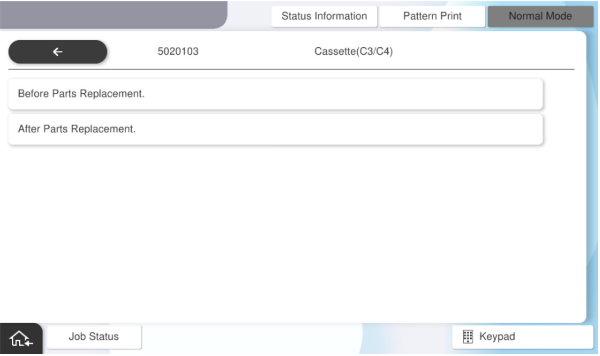

  4. Select [5020103 Cassette(C3/C4)].
  5. Select [Before Parts Replacement]

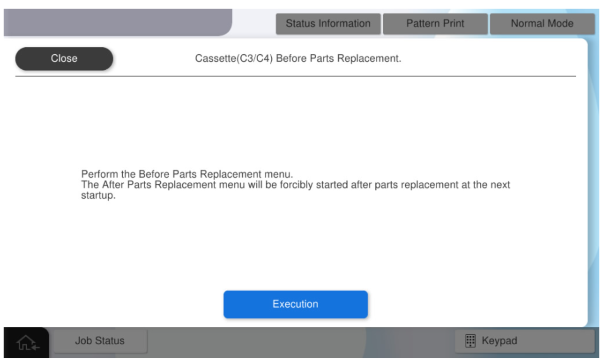

  6. Press [Execution].

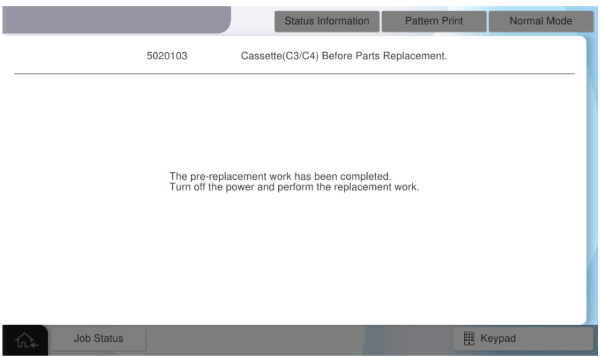

  7. Turn Off the main unit when the following screen is displayed.

    After replacement menu will start automatically at next startup.
