Additional Left Decorative Cover Rear

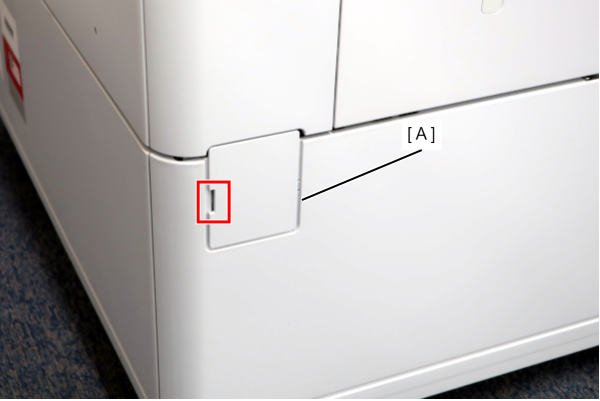

- Release the hook with a flathead screwdriver, etc., and remove the Additional Left Decorative Cover Rear (A).
