Head ASP Packing Configuration / Bundled Items

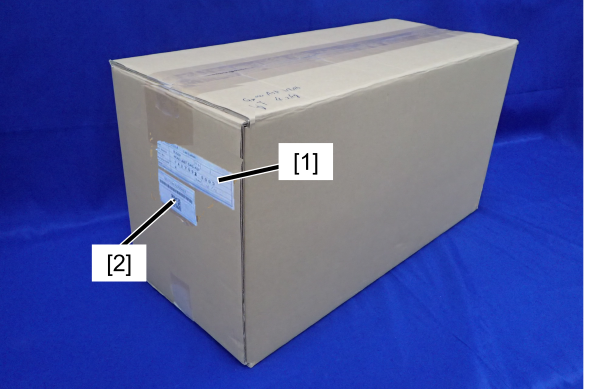

Packing Box / Bundled Items
| No. | Item | Qty. |
|---|---|---|
| 1 | ASP code label | 1 |
| 2 | Serial No. label | 1 |

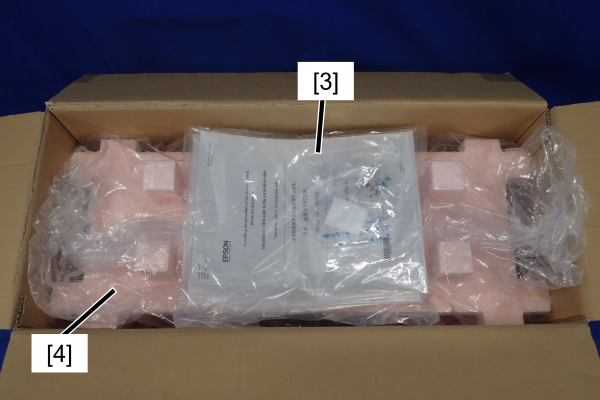

Packing box contents
| No. | Bundled Items | Qty. |
|---|---|---|
| 3 | Head replacement kit | 1 |
| 4 | Upper/lower head palettes | 1 |

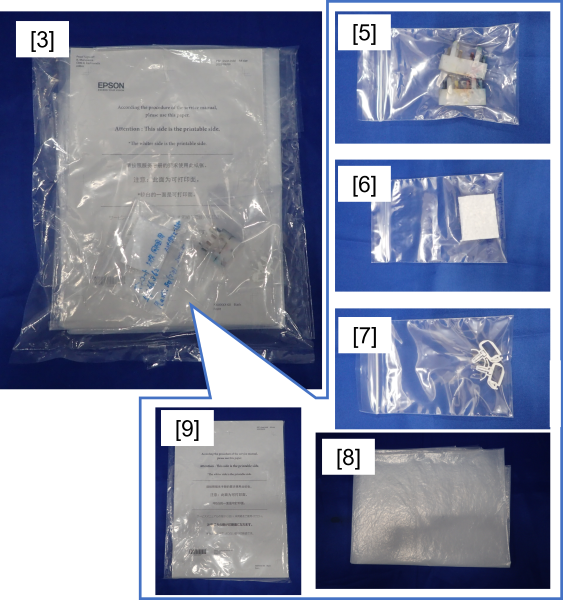

Head Replacement Kit Bundled Items
| No. | Bundled Items | Qty. |
|---|---|---|
| 5 | Protective cap | 2 |
| 6 | Cotton (BEMCOT) | 1 |
| 7 | Clamp | 2 |
| 8 | Head packing bag (spare) | 1 |
| 9 | Paper for adjustment (the EPSON Photo quality ink jet paper) | 1 |

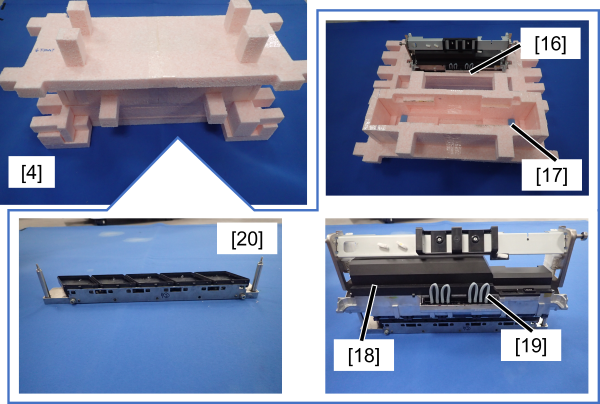

Head Pallet Configuration
| No. | Bundled Items | Qty. |
|---|---|---|
| 16 | Lower head palette | 1 |
| 17 | Upper head palette | 1 |
| 18 | New head unit | 1 |
| 19 | Tube (dedicated sealing parts*) | 4 (1*) |
| 20 | Cap jig |
1 |
*: AM-C6000/5000/4000: Single tube x 4 or dedicated sealing part x 1 (dedicated sealing part is available with ASP)
AM-M5500 includes dedicated sealing part x1 (ASP available for dedicated sealing parts)
