Paper Tray Pickup Clutch

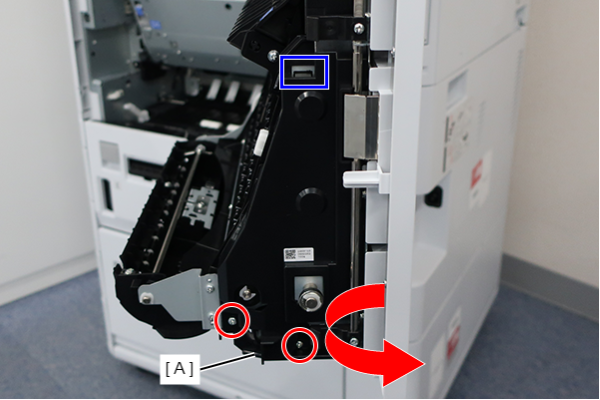

  1. Pull the lever to open the Right Door Unit (A).
  2. Remove the 2 screws.
  3. Release the hook on the blue frame and remove the Right Door Right Cover (A) while turning in the direction of the arrow.

    • :3x8D/P
    Assembly / 組み立て

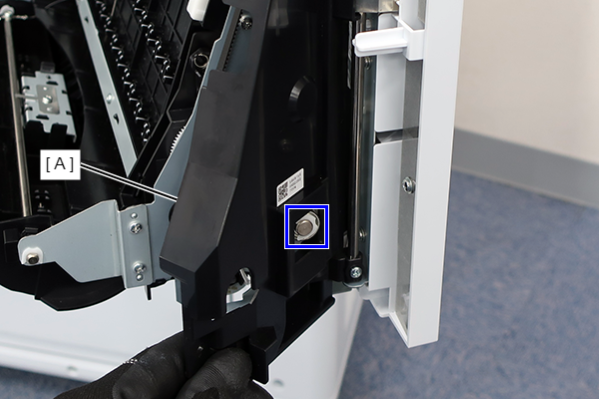

    Attach the Right Door Right Cover (A) by passing the bearing part through the hole as shown in the figure.

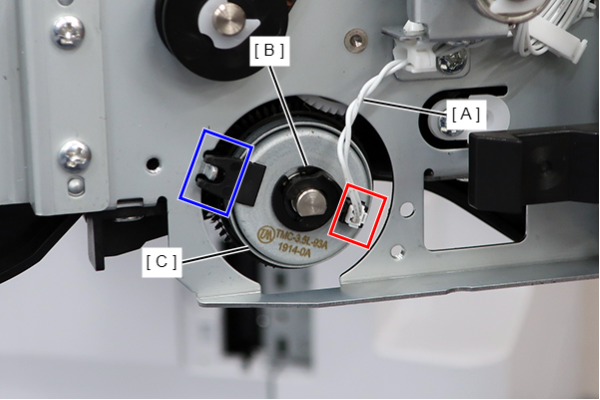

  4. Disconnect the cable (A) from the connector.
  5. Remove the C ring (B) and remove the Paper Tray Pickup Clutch (C).


    Assembly / 組み立て

    Set the concave portion of the Paper Tray Pickup Clutch (C) to the protrusion on the main unit.
