FIN MID/ Drum Sensor Unit

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.

  2. Remove 1 screw of the Rear Cover, Sub (A).

  3. Put your finger on the recess of the rear cover, sub (A) and open it to the left to remove it.


    • : 4x10DC

  4. Remove 3 screws of the Rear Cover, Upper (A).

  5. Slightly raise the top cover (B) and remove the rear cover, upper (A).


    • : 4x10DC

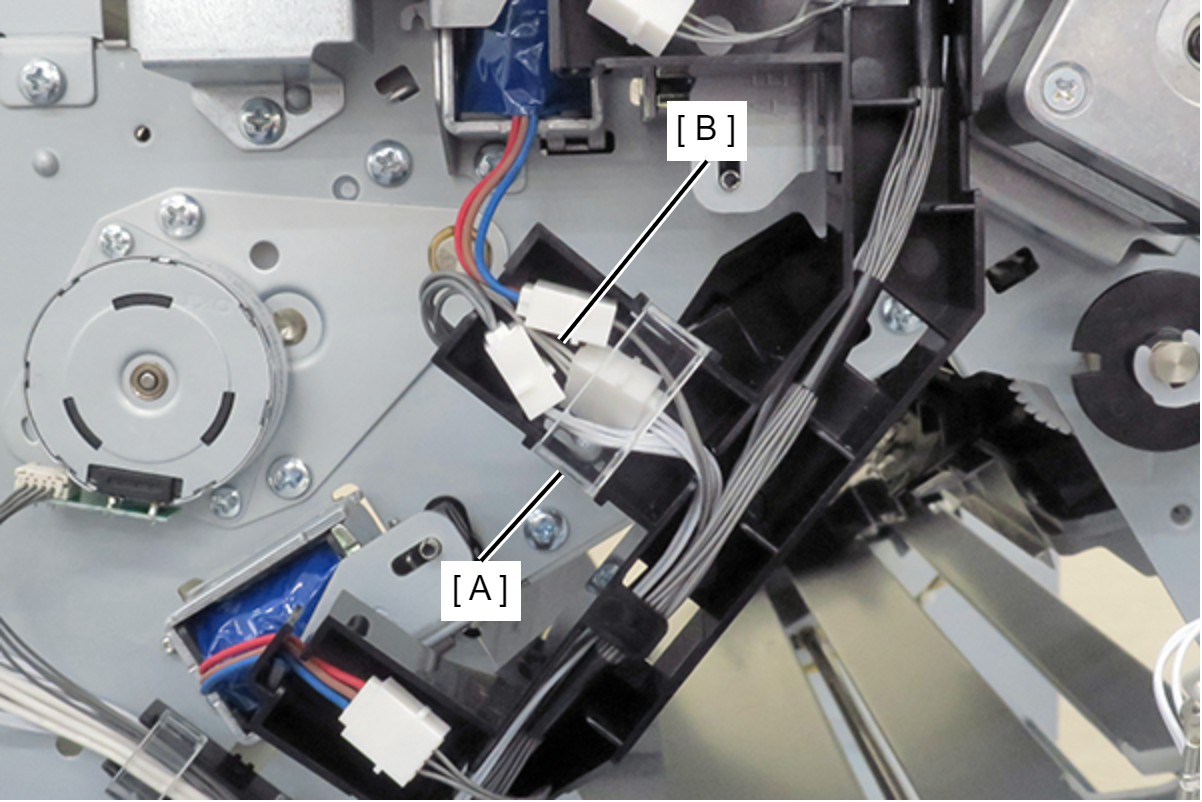

  6. Remove the transparent cover (A).
  7. Remove the cable (gray) (B) from the connector.

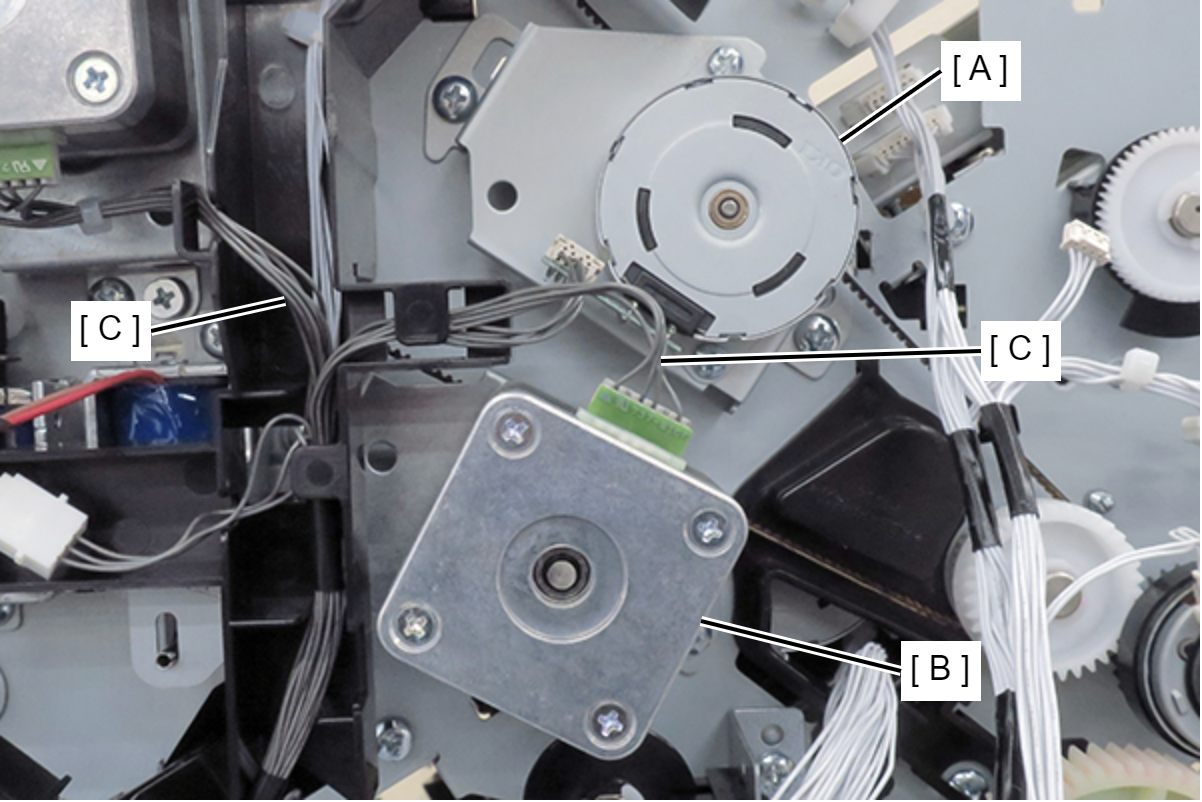

  8. Disconnect the cable (C) from the connectors of the FIN Bundle Ejection Unit Drive Motor (A) and the FIN MID Drive Motor (B).

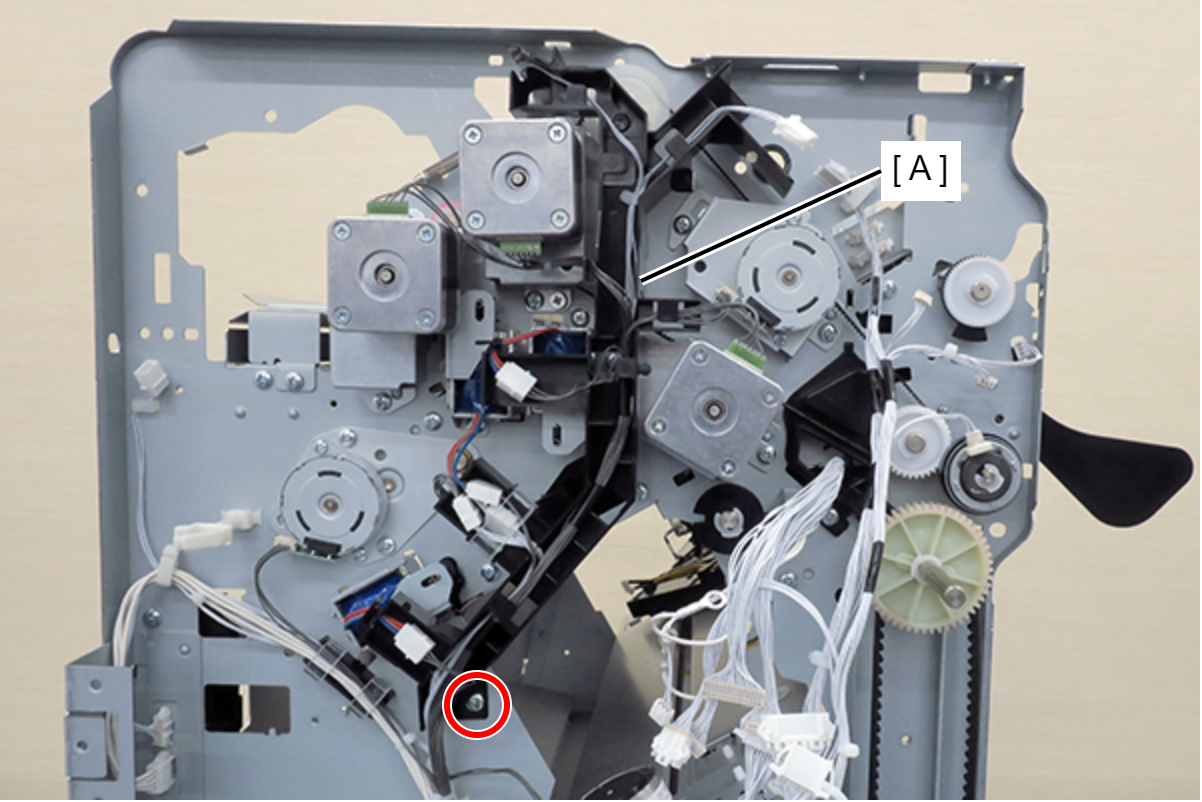

  9. Remove one screw and remove the cable holder (A) while releasing the cable.

    • : 4×8 D/P

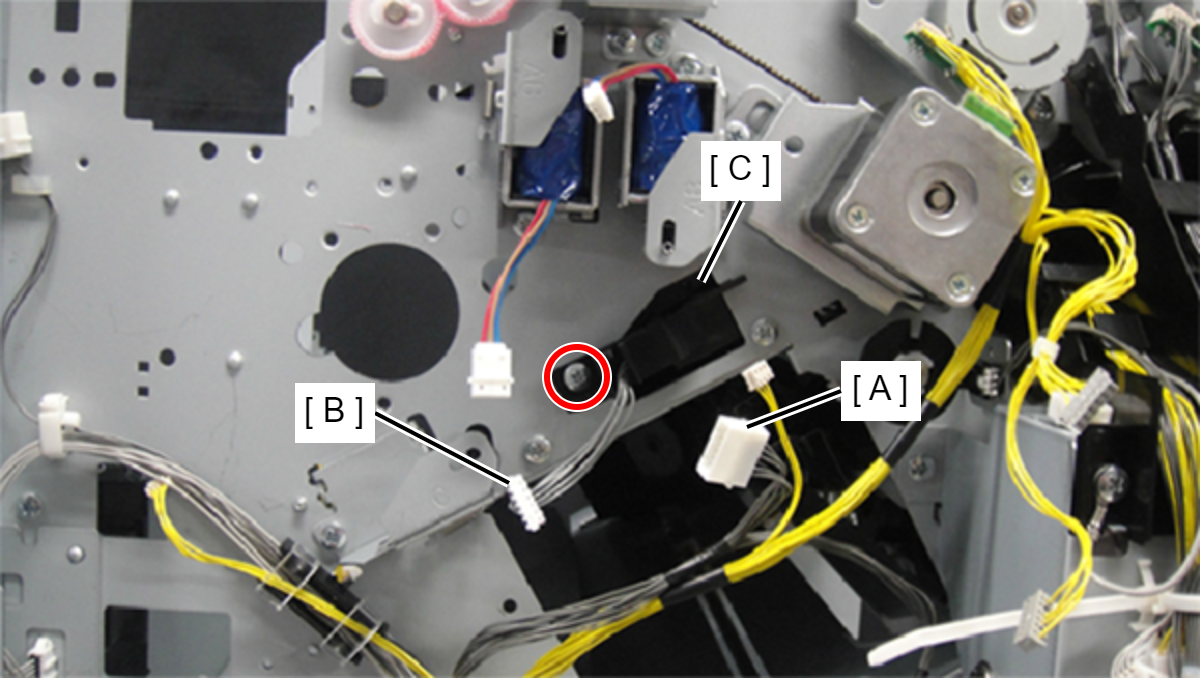

  10. Disconnect the cable (B) from the connector (A).
  11. Remove one screw and remove the FIN MID/ Drum Sensor Unit (C).

    • : 4x8 D/P
