FIN Paper Ejection Cover Sensor

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.
  2. Using a flathead screwdriver, release the hooks (x2) on the top small cover and front (A).
  3. Slide the small top cover front (A) in the direction of the arrow to release the tabs (x2) and remove the cover.
  4. Using a flathead screwdriver, release the hooks (x2) on the small top cover and rear (A).
  5. Slide the small top cover rear (A) in the direction of the arrow to release the tabs (x2) and remove it.

  6. Remove 4 screws of the Top Cover (A).

  7. Release the hook (x2) and lift the Top Cover (A).

  8. Disconnect the cable (C) from the connector (B) and remove the Top Cover (A).


    • : 4x10DC

  9. Remove 4 screws.

  10. Disconnect the cable (A) from the connector.

  11. Remove the Upper Paper Eject Feed Sub-roller Unit (B).


    • : 4x8D/P

  12. Remove the two screws and tilt the lower document ejection cover (A).


    • : 4x10DC
  13. Open the T1 door (A) and open the jam clearing guide T3 (B).
  14. Remove the cable (A) from the relay connector on the left side of the product.
  15. Remove the cables (x2) (A) from the relay connectors (x2) on the rear side of the product.
  16. Pass the cables (x2) (A) through the hole (B).
  17. Remove 4 screws.


    • : 4x10DC

  18. Detach the upper document ejection tray base (B) while bending the lower document ejection cover (A) in the direction of the arrow.

  19. Close the T3 jam release guide (A).


  20. Remove the guide open/close spring (A) from the screw foot.


  21. Release the dowel on the back side of the D4 jam release guide (A) using a flat-blade screwdriver etc.


  22. Release the dowel on the front side and remove the D4 jam release guide (A).

  23. Remove 1 screw of the Rear Cover, Sub (A).

  24. Put your finger on the recess of the rear cover, sub (A) and open it to the left to remove it.


    • : 4x10DC

  25. Remove 3 screws of the Rear Cover, Upper (A).

  26. Slightly raise the top cover (B) and remove the rear cover, upper (A).


    • : 4x10DC
  27. Remove 2 screws and remove the Rear Cover, Lower (A).
    • : 4x10DC

  28. Remove the cable (A) from the connector.

  29. Remove the 2 screws and remove the FIN Bundle Ejection Unit Drive Motor (B).


    • : 4x8D/P

  30. Release the cables (x2) (A) from the clamps (x2).

  31. Disconnect the cables (x3) (A) (C) from the connectors (x3) (B).


  32. Remove the 2 screws and remove the FIN Shift Arm Release Motor (A) upwards.

    • : 4x8D/P
  33. Remove 1 screw and remove the FIN Shift Arm Release Position HP Sensor (A).


    • : 4x8D/P

  34. Open the front cover (A).

  35. Remove the screw that secures the belt (B).
    • : 3x8DC/BK
  36. Remove one screw and slide the cover hinge (A) upward to remove it.
  37. Remove the front cover (B).

    • : 4x8D/P
  38. Remove one screw and remove the front cover lower (B) and washer (A).
  39. Remove the washer (A).
  40. Remove the front cover lower (B).
    • : 4x10DC
  41. Remove 3 screws and the Front Inner Cover, Upper (A).


    • : 4x10DC
  42. Remove the one screw.


    • : 4x10DC

  43. Slightly lift the front inner cover sub (A) to release the hook and remove it.

  44. Remove the cable (x2) (A) from the connector on the rear side.
  45. Remove the plastic E-ring (A), and remove the sensor pulley (B) and the gear (C).
  46. Remove the 2 screws.
  47. Slide the bearing (D) along the groove in the frame and remove the shift arm unit (E).


    • : 4x8D/P
    Assembly / 組み立て
    • Check the following points when installing the shift arm unit.
      • Is the cover (A) shown in the figure below in the outside position?
      • Is the interlock switch (A) pushed by the shift arm unit (B)?

  48. Remove 4 screws.

  49. Slightly lift the front inner cover bottom (A) to release the hook.


    • : 4x10DC
  50. Remove the lower front inner cover (A) and the front caster cover (B).


    Assembly / 組み立て
    • Insert the shaft (B) into the hole of the lower front inner cover (A).
    • Fit the hooks (x2) at the bottom of the front caster cover (A).
    • After assembling the lower front inner cover (A) and the front caster cover (B), tighten the screws together.
  51. Remove one spring (B) from the bundle discharge unit lift up shaft (A).


  52. To prevent the spring from being lost, hang the spring (A) on the shaft (B) on the bundle discharge unit side.


  53. Release the hook and remove the harness guide (A).
  54. Remove the plastic E-ring (B) and bearing (C) from the front side.
  55. On the back side, remove the plastic E ring (D) and remove the gear (E).
  56. On the back side, remove two plastic E-rings (F) and remove the bearing (G).
  57. Pull out the bundle discharge unit lift up shaft (A) from the hole on one side and remove it.

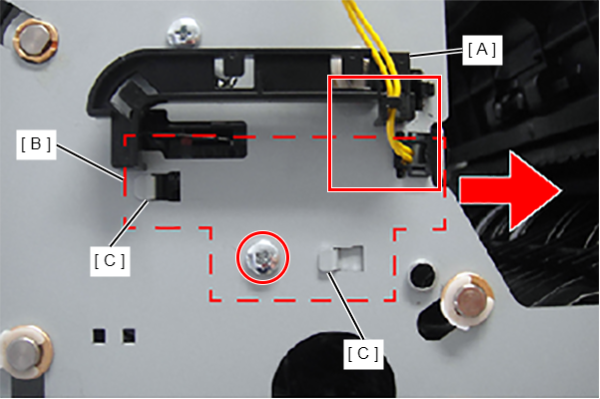

  58. Release the cable (A) from the hook.
  59. Remove the screw.
  60. Slide the Ejection Cover Sensor Unit (B) to release the tabs (C) (x2).

    • : 4x8 D/P

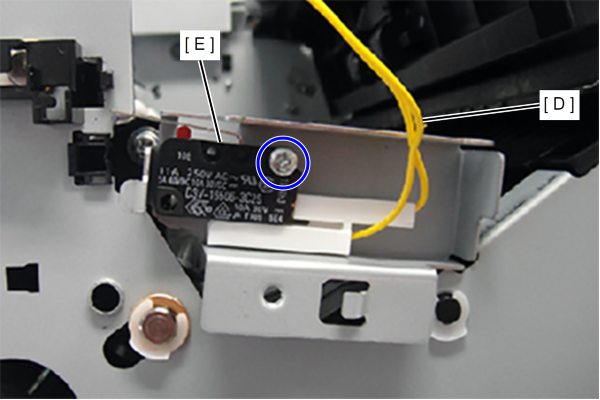

  61. Remove the screw.
  62. Disconnect the cable (D) from the connector and remove the FIN Ejection Cover Sensor (E).

    • : 3x16 D/P
