SCN CIS Module

  1. Open the ADF cover (B) while pulling the lever (A).
  2. Remove the 6 screws that secure the ADF rear cover (A), and release the 4 hooks.

    • : 3x10DW

  3. Release the two hooks while pressing the position shown in the figure in the direction of the arrow, and remove the ADF rear cover (A).

    Assembly / 組み立て

    Attach the ADF rear cover (A) by inserting the two tabs into the holes.
  4. Remove the C-Ring (A).
  5. Pull out the hinge stopper (A) in the direction of the arrow.
  6. Open the ADF (A).
  7. Remove the 2 screws and remove the Panel Upper Cover (A).
    • : 3x10DW
  8. Remove the 8 screws and remove the SCN upper case (A).
    • : 3x5DC/B
  9. Release the two dowels and rotate the CISM spacers (A) to remove them.

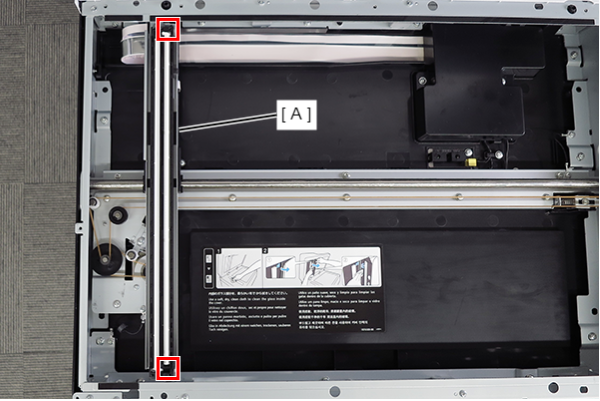

  10. Release the two dowels on the SCN CIS module (A).
  11. Flip the SCN CIS module (A) over.

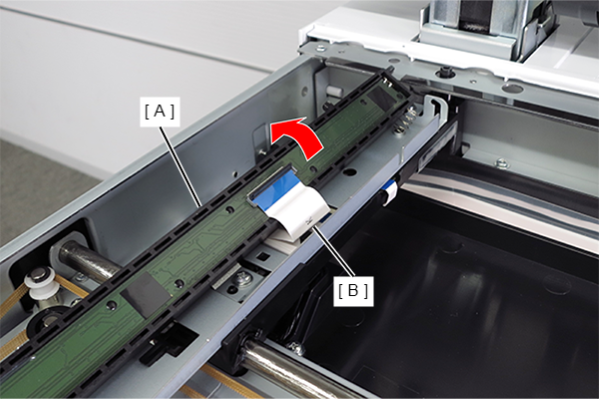

  12. Release the connector lock and remove the FFC (B) from the connector.
