Pre-PW Paper Guide
- Pull the lever to open the Right Door Unit (A).

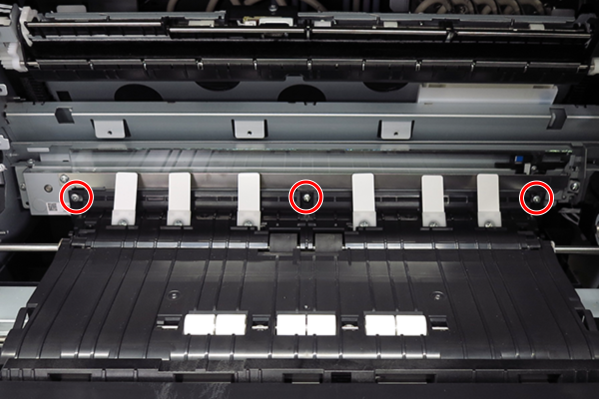

- Remove the 3 screws from the Pre-PW Paper Guide (A).
: 3x5D

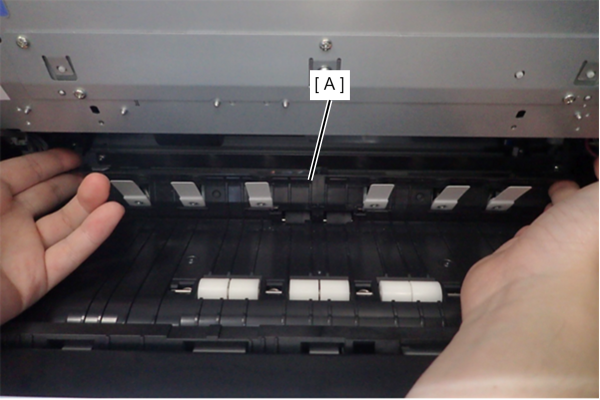

- Tilt the Pre-PW Paper Guide (A) toward you and lift up to remove it.
