6040303 Half Folding Position Adjustment

  1. Start the service support mode.
  2. Select [06 Individual Adjustment].
  3. Select the [Floor Finisher] tab.
  4. Select [6040303 Half Folding Position Adjustment].

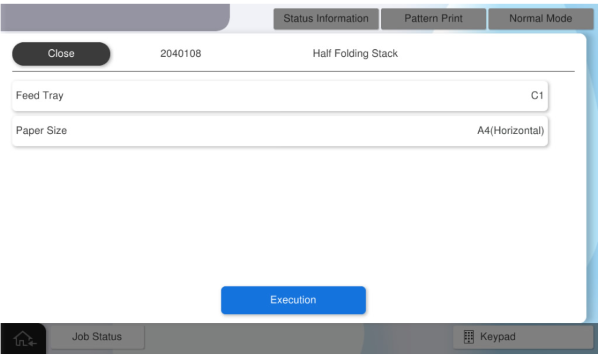

  5. Press [Pattern Print].



  6. Press each setting item button to make the print settings.


    The parameters that can be set are as follows.

    Setting Items Selection
    Feed Tray C1, C2, C3, C4, Paper Tray
    Available Paper Sizes A4 (Horizontal), Letter (Horizontal)
    Caution / 注意

    Make sure the paper orientation is as specified (SEF/Horizontal).
    If the orientation is different from the specifications (LEF/Vertical), the paper will be ejected without being processed correctly and the operation cannot be checked.
  7. Press [Execution] to output the adjustment sample.

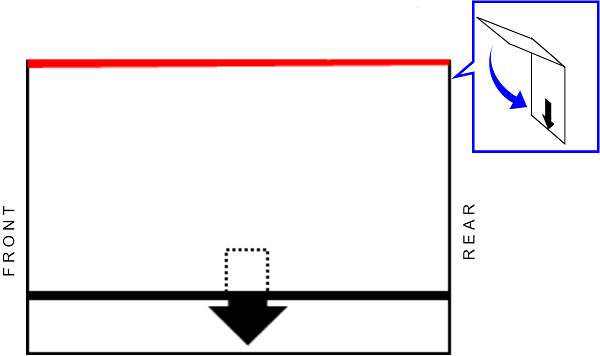

  8. Place the adjustment sample with the mark on the bottom.
  9. Measure the distance between the reference edge and the other end edge. (Measurements should be taken in the center position.)

  10. Convert the measurement results to adjustment values.

    Check Point / チェックポイント

    The conversion method from the measurement result to the adjustment value is as follows.

    1. Adjustment value calculation
      Adjustment value calculation method: Adjustment value = measurement result × 10

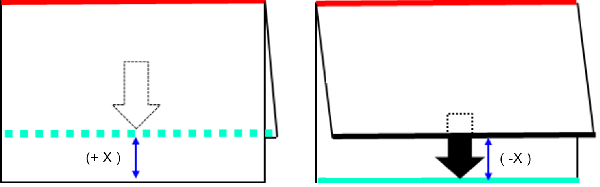

    2. Determination of the sign of the adjustment value from the state of the reference side of the adjustment sample
      • Reference side not visible: positive adjustment value
      • Reference side visible: negative adjustment value

    Example) If the reference side of the adjustment sample cannot be seen and is deviated by 3.5 mm, the adjustment value = +35

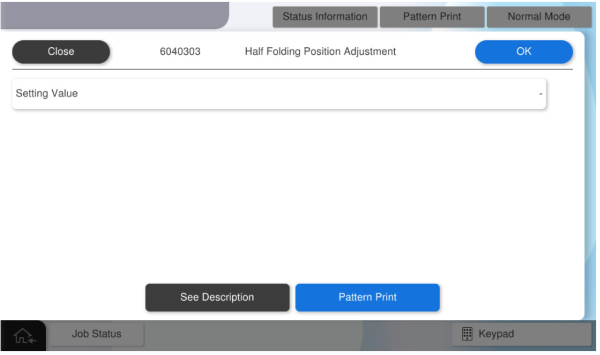

  11. Press [Setting value] and enter the calculated adjustment value.

    Check Point / チェックポイント

    Adjustment value input range: -96 ~ 96 (-9.6 mm ~ 9.6 mm)

    Numerical values outside the adjustment value input range cannot be entered.
  12. Press [Pattern Print] to apply the adjustment values and output an adjustment sample.
  13. Check the adjustment sample, and if the folding misalignment is improved, press [Close] to finish the adjustment.
    If the misalignment of the folding position is not improved, repeat the adjustment.
