Floor Bridge Unit A

Bundled Items

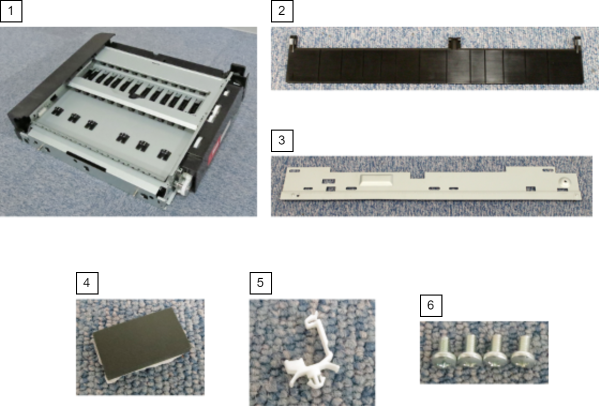

No. Bundled Items Qty.
1 Floor Bridge Unit A 1
2 FB Paper Guide 1
3 Paper threading position adjustment plate 1
4 Rubber pad 1
5 Clamp 1
6 Screw M3 × 8 4
Caution / 注意

When installing Floor Bridge Unit A, you will need SHEET, BRIDGE, and EJ.

SHEET,BRIDGE,EJ is Main unit bundled parts, so keep it. (See Main Unit Bundled Items and Unpacking Procedure for details)

*Depending on the manufacturing date, SHEET,BRIDGE,EJ may not be included with the main unit.
Please order as necessary.
Unpacking Procedure
Items to Prepare
  • Gloves
  • Cutter
Minimum number of workers

1 person

Caution / 注意

Be sure to check the following precautions before unpacking.

  • All workers must read the unpacking procedure together before starting the work.
  • Wear easy-to-move clothing, gloves and safety shoes and work with care for injuries etc.
  • Work with sufficient working space.
  • Work in a posture that does not easily apply a load on your body, and stop work immediately if you feel that the load is too large during the work.
Unpacking Procedure
  1. Remove the tape and open the top cover.

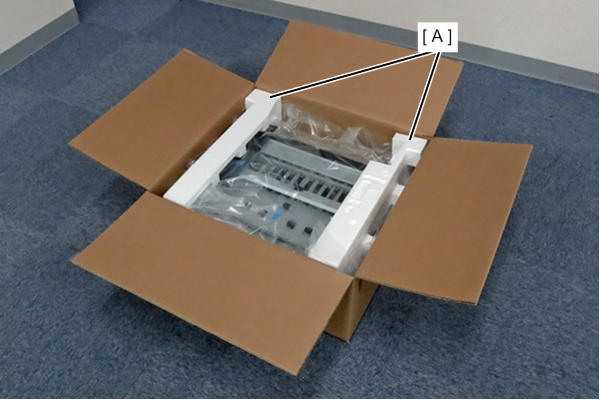

  2. Remove the 2 cushioning materials (A) on the top.

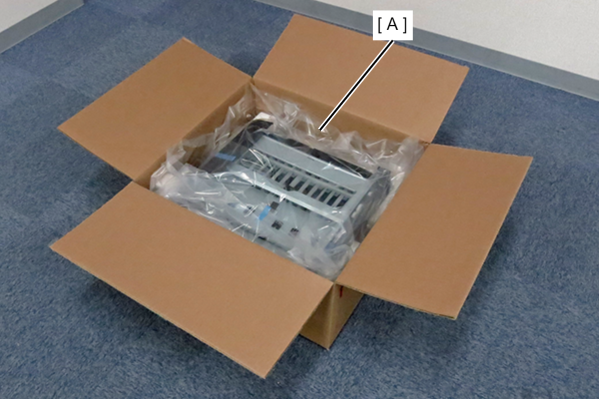

  3. Remove the vinyl cover (A).

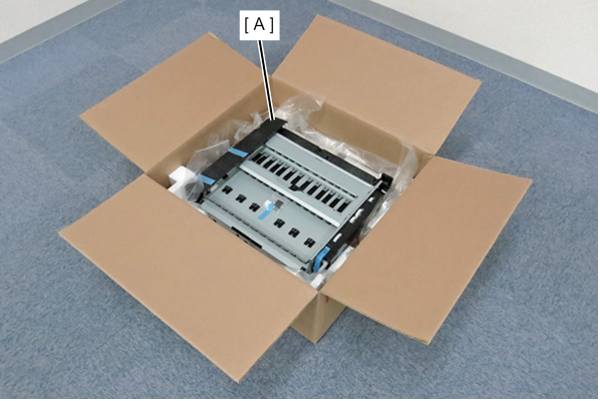

  4. Remove the floor bridge unit A (A).
  5. Take out the bundled items small box.

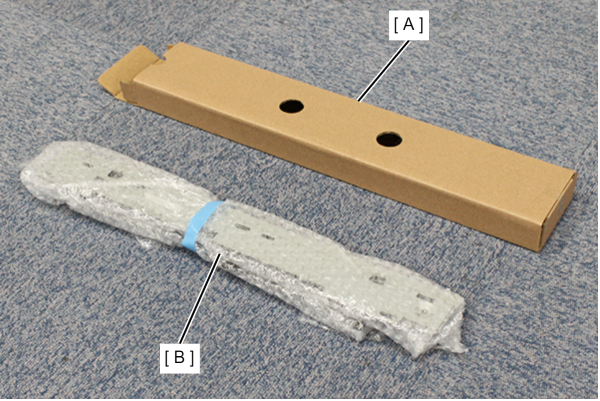

  6. Remove the package (B) from the included small box (A).

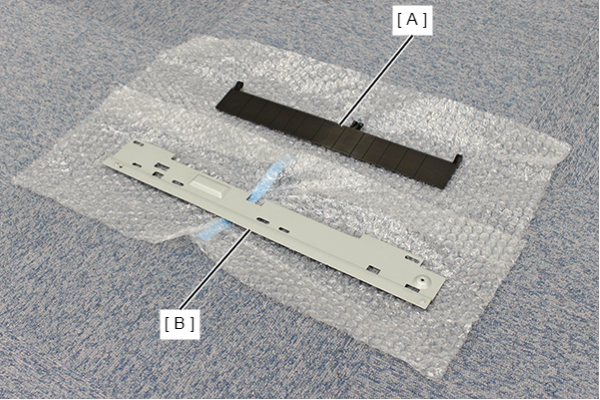

  7. Remove the tape, remove the air bubble packing material, and the FB paper guide (A) and the paper feed position adjustment plate (B).

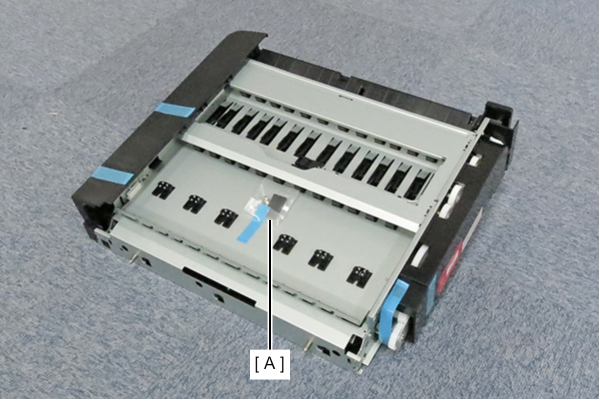

  8. Remove the included package (A) and remove all protective tape.
