307010202 IN FIN Paper Transport Sensor

Program No. Menu Name Judgment method Remarks
307010202 IN FIN Paper Transport Sensor Check by passing the paper through the paper feed path.

TRUE: Detection
FALSE: No Detection
Default: FALSE

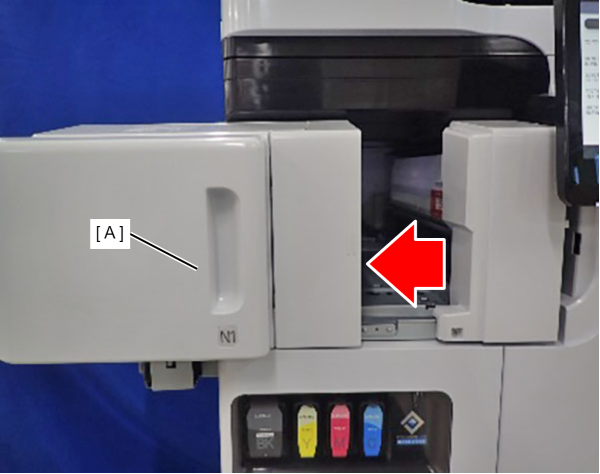

  1. Slide the N1 (A) of the Inner Finisher in the direction of the arrow and pull it out.

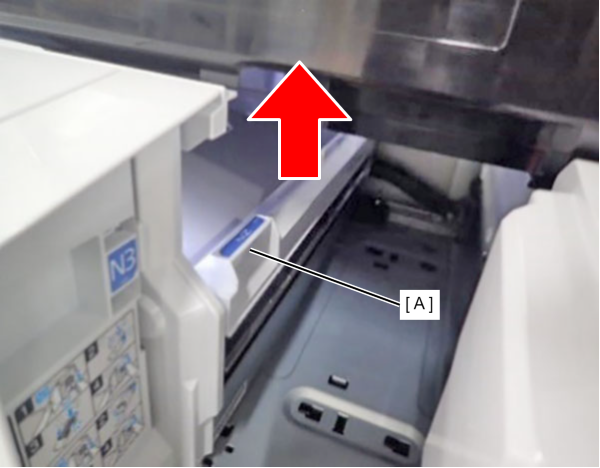

  2. Raise the N2 Cover (A) of the inner finisher in the direction of the arrow.

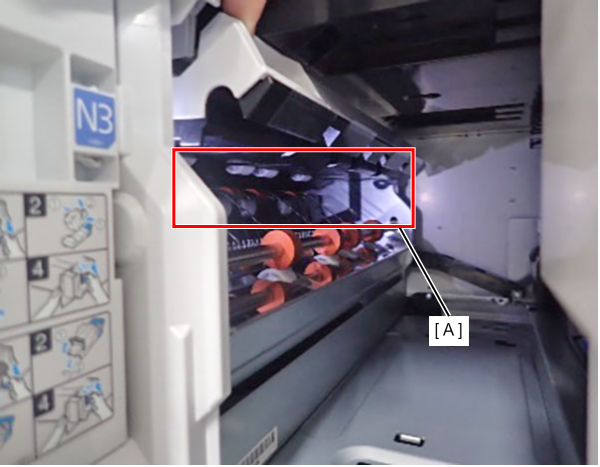

  3. Insert/remove a sheet of paper in/from the portion (A) to see if the sensor detects paper.
