After replacement work for Selector Unit

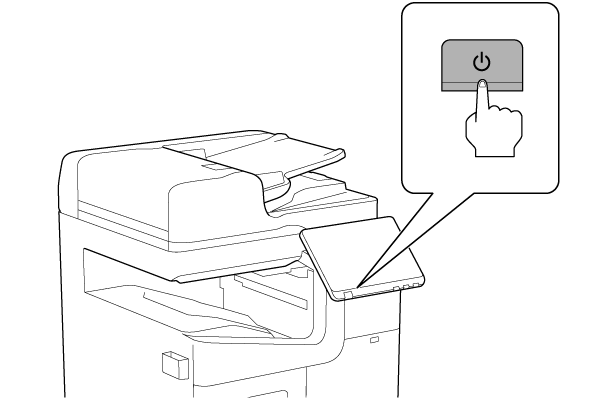

- Turn the power ON.

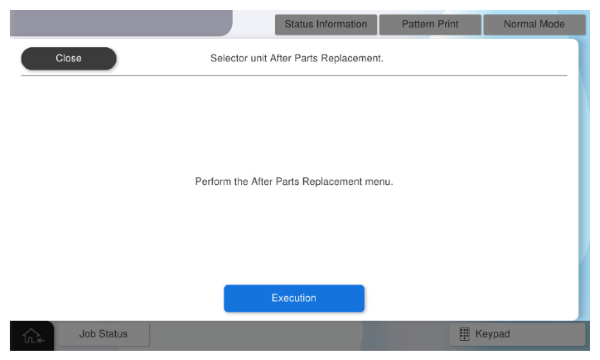

- Press [Execution].

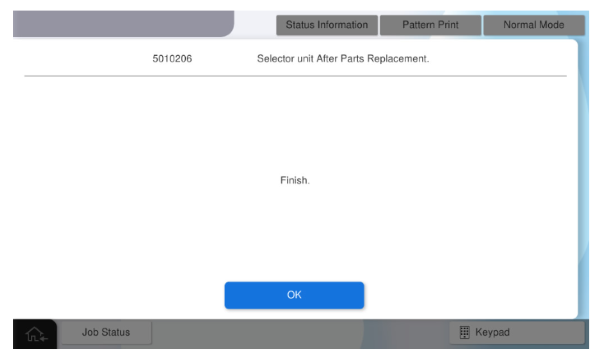

- Press [OK] to complete the menu.
