Panel Inner Cover

  1. Open the ADF (A).
  2. Remove the 2 screws and remove the Panel Upper Cover (A).
    • : 3x10DW
  3. Remove the 2 screws.

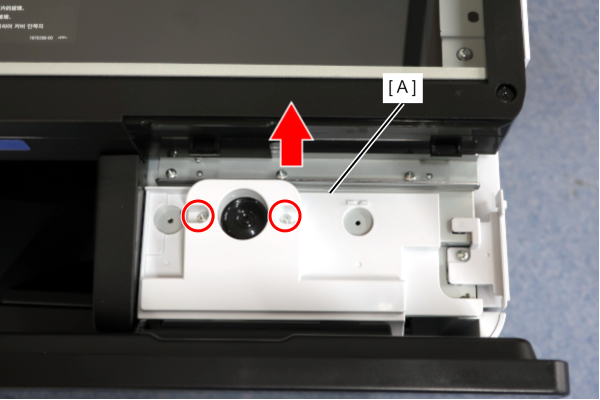

  4. While lifting the upper side of the Panel Inner Cover (A), remove in the direction of the arrow.

    • : 3x8D/P
