C3 Pickup Unit

  1. Open the additional cassette paper feed cover (A).
  2. Remove the C3 cassette (A).


    Assembly / 組み立て

    The corresponding cassette can be replaced with another cassette.
    In that case, follow the steps below.

    1. Loosen the two screws on the dial (A) and align the groove on the bearing (B) with the dowel on the dial (A).
    2. Replace the label (A) on the cassette.
  3. Remove 1 screw and remove the connector cover (A).

    • : 3x8D

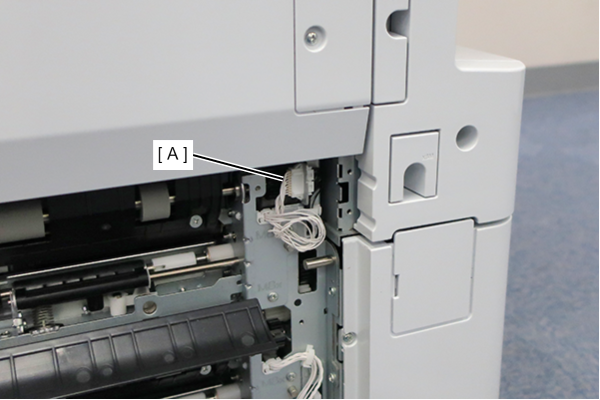

  4. Remove the cable (A) from the relay connector.

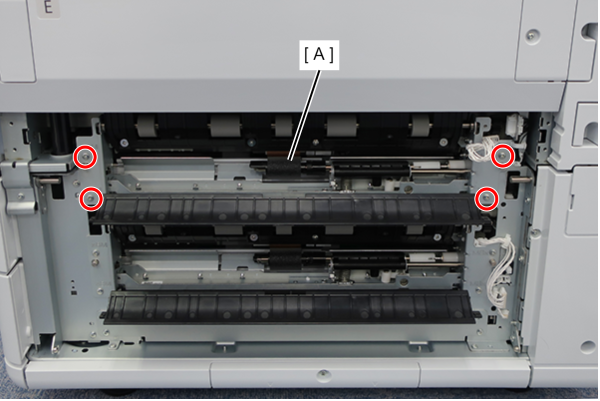

  5. Remove 4 screws.
  6. Remove the C3 Pickup Unit (A) by pulling it out from the two shafts.
    • : 3x8D
  7. Remove the C3 Pickup Unit (A) from the left shaft and remove it in the direction of the arrow.
