FIN Paper Feed Motor

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.

  2. Remove 1 screw of the Rear Cover, Sub (A).

  3. Put your finger on the recess of the rear cover, sub (A) and open it to the left to remove it.


    • : 4x10DC

  4. Remove 3 screws of the Rear Cover, Upper (A).

  5. Slightly raise the top cover (B) and remove the rear cover, upper (A).


    • : 4x10DC

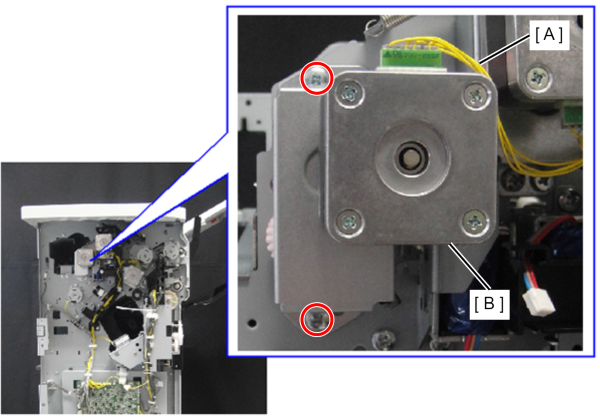

  6. Disconnect the cable (A) from the connector.
  7. Remove 2 screws and remove the FIN Paper Transport Motor (B)

    • : 4x8 D/P
